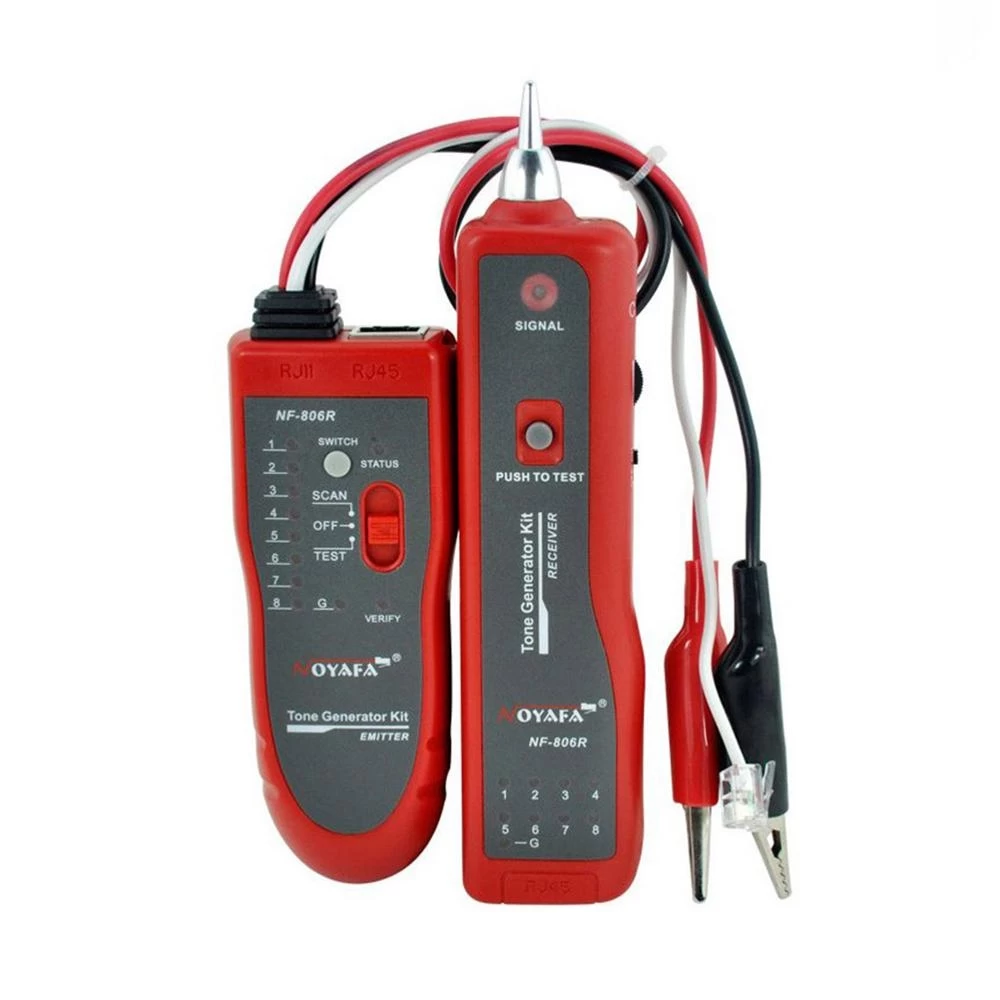

Cable Tracing and Diagnostic Tool Tone Generator For UTP, STP


In stock

$89.90 $109.90

In stock

This ergonomic instrument is ideal for testing communication lines, integrated wiring, line weak systems installation, maintenance and engineering. They are widely used in telephone systems, computer networks and other metal wire lines and other fields.


• Check and find the needed cables amongst many cables in a bundle
• Continuity test for Lan cables, such as breakage, open, short and cross
• Visible indication: pin-to-pin cable map for individual cable (not by pairs).
• Transmitter with RJ11 connector and pair of alligator clips.
• Low Voltage alarm function.
• Used on single conductors, twisted pairs, telephone cable and ed-energized electrical wiring
• Highlights for 60V endurable, users can track wires which are low-electricity when less than 60V without burnout or damage



• Tone frequency: 1KHz
• Max. distance of transmission: Up to 2 kilometers
• Max. working current: Less than 10mA
• Volume Regulate Function: Audio volume level control
• Tone mode: 2 Tones, adjustable

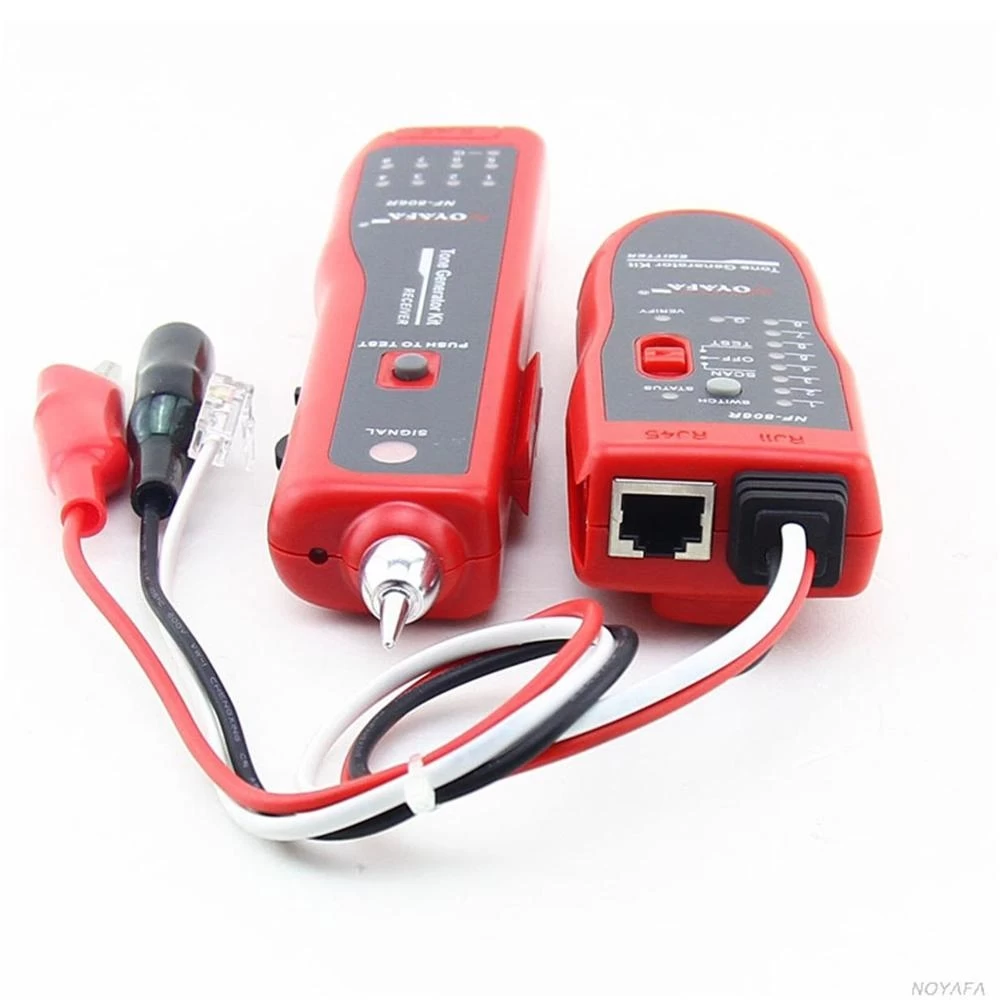

• Compatible connectors: RJ45, cable clip with RJ11 connector
• Max. signal voltage: 8Vp-p
• LED lights display: Wiremap, tone, tracing
• Dimensions (LxWxD): 15 x 3.7 x 2cm


• Frequency: 1KHz
• The Max. working current: Less than 30mA
• Earphone jack: 1

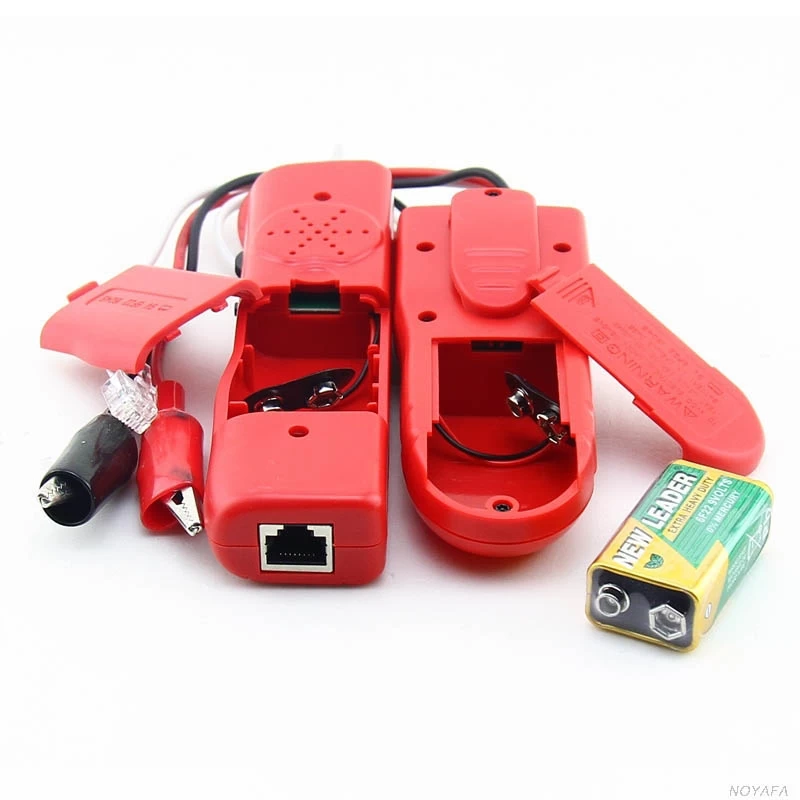

• Battery Type: DC9.0V x1pc
• Dimensions (LxWxD): 12.2 x 4.5 x 2.3cm

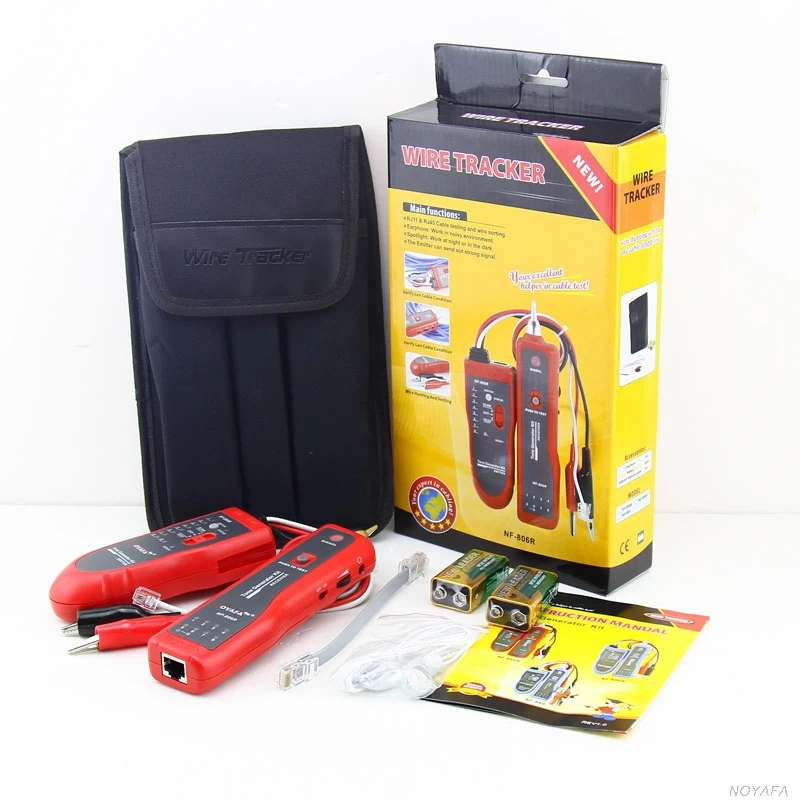

Set Includes

1 x NF-806 Transmitter
1 x Receiver
1 x Earphone
1 x Manual
