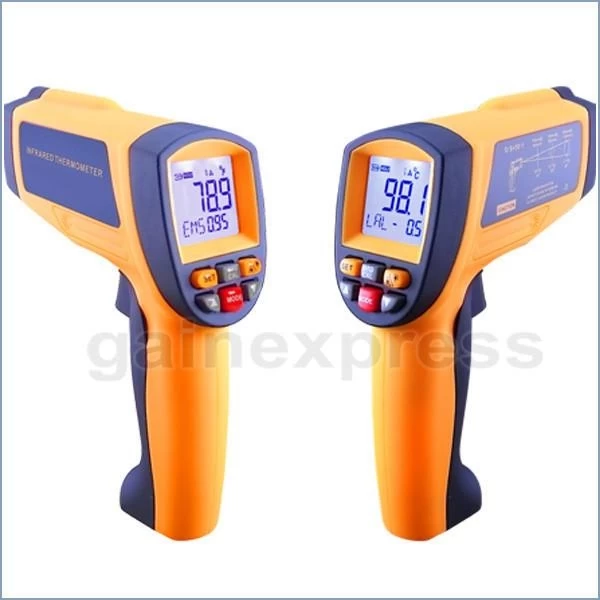

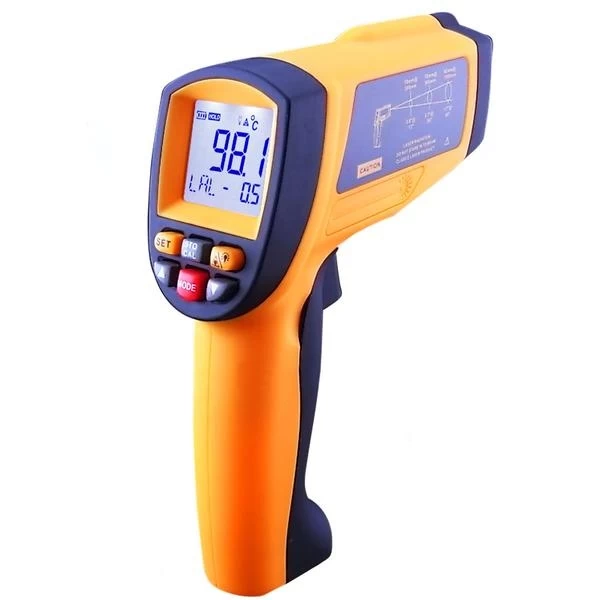

Digital 20:1 Professional Infrared Thermometer & Pyrometer

Availability:

In stock


$159.90 $236.82

In stock

The Professional Digital Infrared Thermometer is a reliable device used for measuring temperature of the object’s surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. Just aim the Laser Point, press the button, and read the temperature in less than a second.

It has an Ultra High Distance to Spot Ratio (20:1) and a wide Temperature Range from  -50~1150°C (-58~2102°F)  . The thermometer also features a backlit LCD, High Accuracy, Fast Response Time (0.5 seconds), User Adjustable Emissivity (Preset at 0.95) and Spectral Response from 8 to 14 µm.

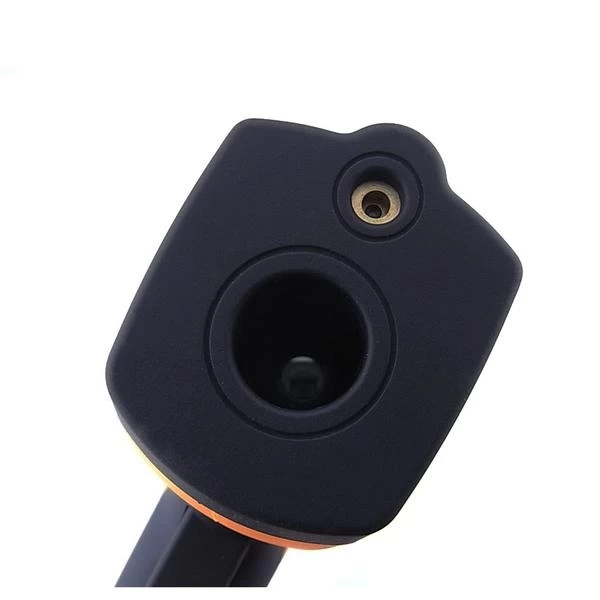

It consists of Optics, Temperature Sensor signal amplifier, Processing circuit and LCD display. The device’s electronics translate the information into a temperature reading which is displayed on the LCD.

In addition, °C and °F can be easily switched. It also has 12 memory slots for data storage, Maximum, Minimum, Average and Difference in temperature functions, Adjustable High and Low Temperature Alarm.

Applications

• Heat ventilation air-conditioning and refrigeration
• Automotive industry
• Food preparation
• Horticulture
• Construction, mechanics
• Electrical & power voltage/current inspection field
• Water treatment and water quality inspection
• Environmental monitoring
• Marine and weather
• Gas industry
• Food processing industry

Features

• Memory storage function (up to 12 data)
• Wide Temperature range with -50~1150°C (-58~2102°F)
• With D:S = 20:1, maximum distance from the target object
• Highly accurate and reliable
• Adjustable Emissivity (Preset at 0.95)
• Spectral Response from 8~14µm

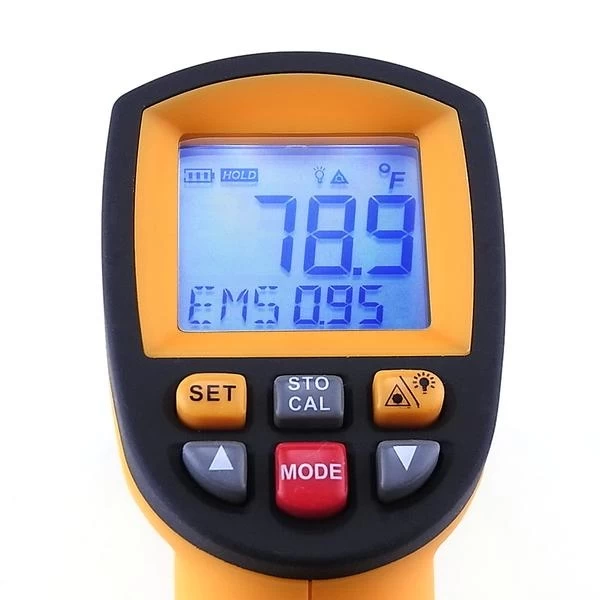

• Large clear LCD display with Backlight
• Auto Power Off
• Data Store/Recall Function
• Data Hold Function
• Access surface temperature in 1 second
• Selectable between °C and °F
• Maximum, Minimum, Average and Difference temperature functions
• Adjustable High / Low Temperature Alarm
• Fast response time (0.5 seconds)
• Measure hazardous or inaccessible objects (high-voltage parts)
• Laser Target Pointer selection

Specifications

• Measuring Range:  -50~1150°C (-58~2102°F)
• Accuracy
• 0 ~ 1150°C (32~2102°F) : ±1.5°C (±2.7°F) or ± 1.5%
• -50~0°C (-58~32°F) : ±3°C (±5°F) whichever is greater

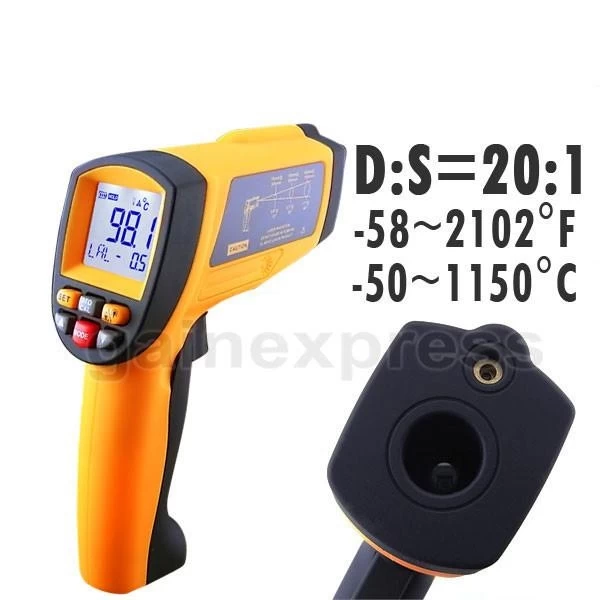

• Distance to Spot Size / DS Ratio: 20:1
• Resolution: 0.1 °C/°F
• Repeatability: 1% of reading or 1°C
• Response Time: 500mSec, 95% response
• Spectral Response: 8~14µm
• Emissivity: User Adjustable and Preset at 0.95
• Laser Power: <1 mW
• Laser Class : Class III
• Operating Environment
     • Temperature: 0~40°C (32~104°F)
     • Humidity: 10~95% R.H. non-condensing at up to 30°C (86°F)
• Storage Temperature: -20~60°C (-4~140°F)
• Item Size: approx. 141 x 60 x 200mm
• Item Weight: approx. 270g

Approximate Emissivity
Material
Emissivity
**Aluminum
**0.30
**Brass , Lead
**0.50
**Basalt , Iron
**0.70
**Steel
**0.80
**Carbon , Glass (plate)
**0.85
**Brick , Frozen Food , Sand , Snow
**0.90
**Dirt , Oil , Textiles , Wood
**0.94
**Hot Food , Paint , Water
**0.93
**Asphalt , As bestos, Ceramic , Concrete , Copper ,
**Paper , Plastic , Rubber
**0.95
**Ice , Limestone , Skin
**0.98

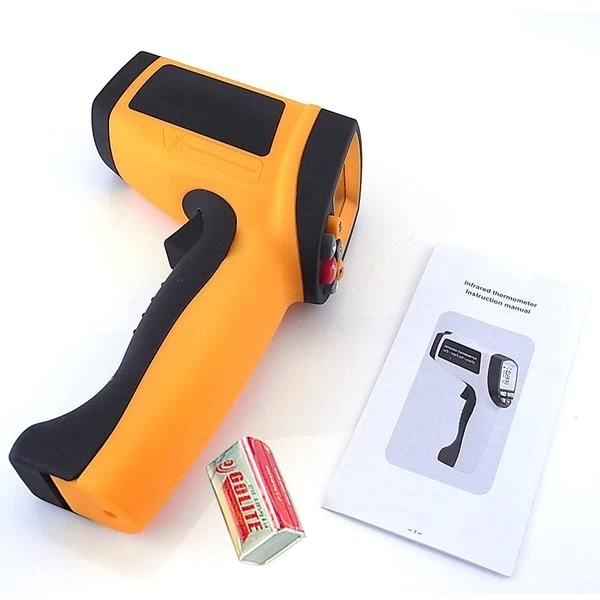

Set Includes

• 1 x Professional Infrared Thermometer
• 1 x Instruction Manual
