Digital Gasoline Engine Non Contact Tachometer 50.0~9,999 r/min


In stock


In stock

Detect, count and display handheld engine tachometer runs with this battery-operated meter, highly portable and suitable for outdoor measurement. It displays the rotational speed of gasoline engines in r/min unit. It is a non-contact type tachometer which easily measures the rotational speed just by bringing the detection head close to the high-tension wires of gasoline engines.

Applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, steamer etc.


• Non-contacting detection enables an easy and safe measurement
• Assures an accurate measurement because the signal indicator shows how the signal is captured
• Accurate rotational speed can be obtained in 0.1 or 1 r/min unit
• It comes with a battery life indicator
• With audible alarm and Max data Hold function
• Compact, light-weight and easy-to-carry, enabling one-hand measurement
• Record, analyze, print, communicate with PC


• Display: 4 Digits 10mm LCD
• Applications Engine Type: Gasoline Engine

• 2-Cycle (1, 2, 3, 4 Cylinder)
• 4-Cycle (1, 2, 3, 4, 5, 6, 8 Cylinder)

• Detection Method: Ignition Spark Noise Detection
• Detecting Object: high-tension wire (ignition cord)
• Detection Distance: 30~200mm
• Range: 50.0~9,999 r/min
• Resolution:

• 0.1RPM (50.0~999.9RPM)
• 1RPM (over 1000RPM)

• Accuracy: ±(0.05% n+1d)
• Connection: PC connection via RS232C interface
• Operating Condition: 0~50°C , <85%
• Weight: 65g (including batteries)
• Memory: Max / Min / Last Value
• Size: 97 x 35 x 25mm

Set Includes

• 1 x Digital Engine Tachometer

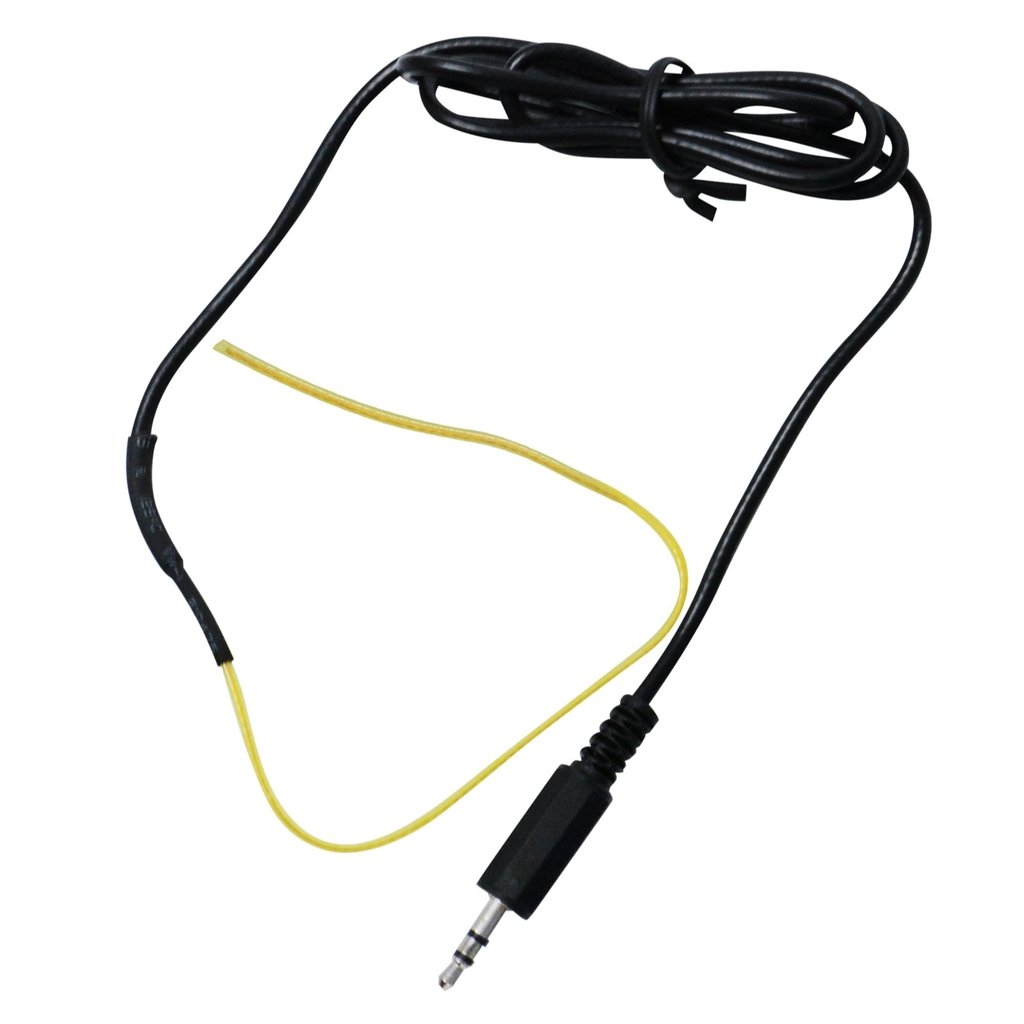

• 1 x External antenna
• User Manual
