Indoor Continuous Monitoring Air Quality & Carbon Dioxide Meter w/ PC Data Logging

Availability:

In stock


$368.82

In stock

This meter measures CO2 levelAir Temperature, Dew Point (DP), Wet Bulb Temperature (WB) and Humidity (RH) and is an ideal instrument for Indoor Air Quality (IAQ) diagnosis.

Poor indoor air quality is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex. Sick Building Syndrome).

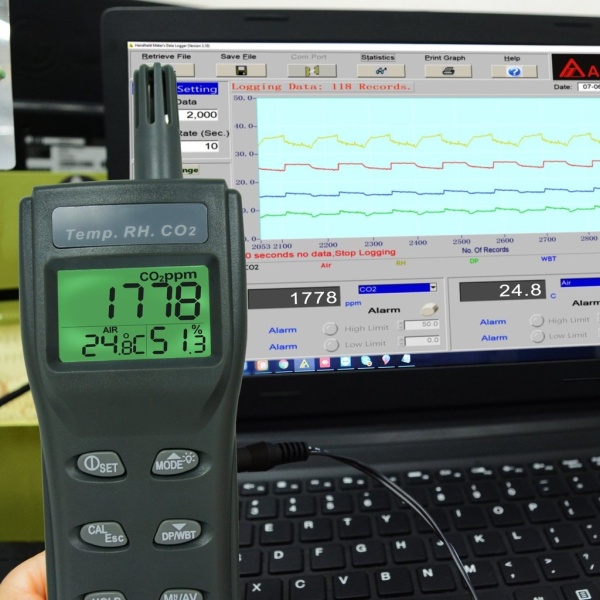

This continuous monitoring kit set includes a universal power adapter and Software CD & USB Cable for on-line data logging when connecting to PC. Data logged in the software can be exported in chart or txt file for further analysis.

Features

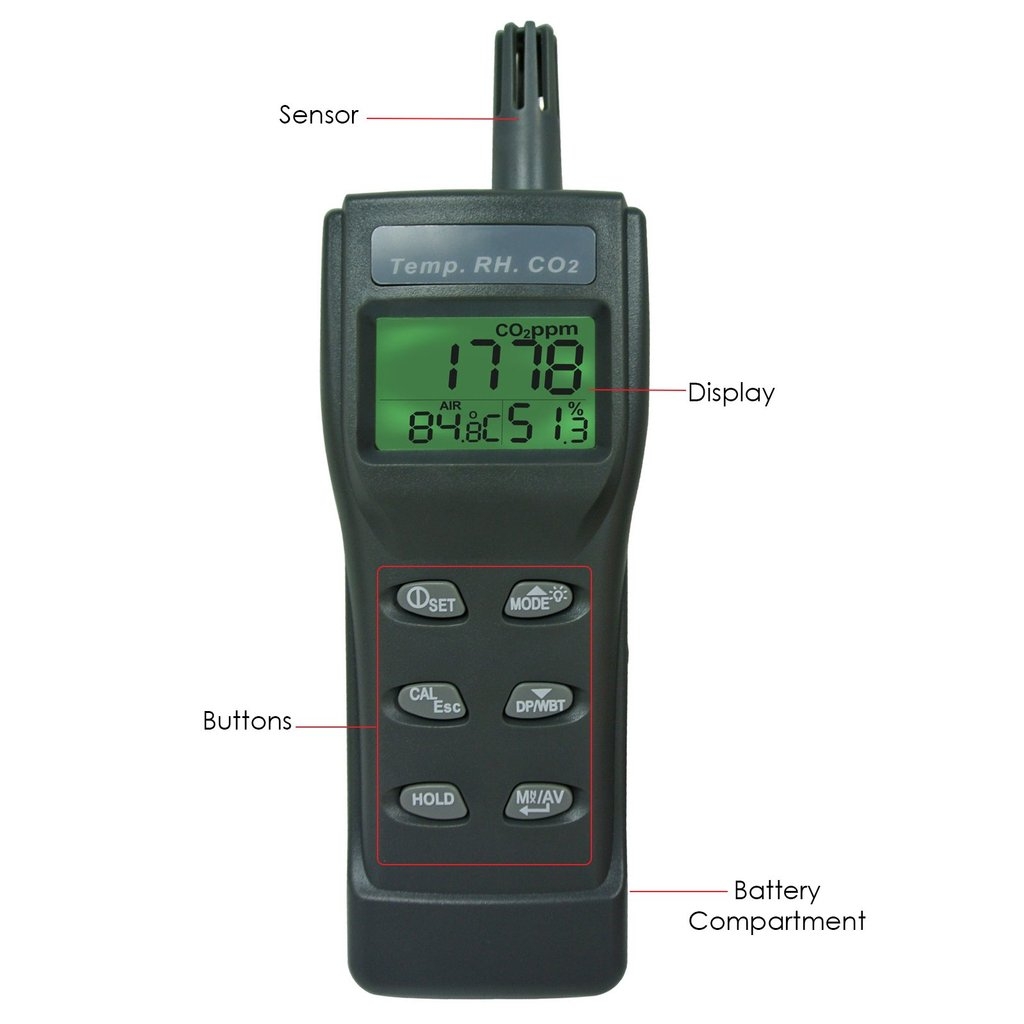

• Triple displays of CO2 level, temperature (°C/°F) and Humidity
• Stable NDIR sensor for CO2 detection
• Statistics of weighted averages

• TWA (8 hours weighted average)
• STEL (15 minutes-weighted average)

• Backlight, Data Hold, Min/Max
• Sound warning alarm for CO2 high-level risk
• Easy manual calibration on CO2 and humidity
• PC connection for on-line logging and data analysis
• Portable Design
• Manual calibration of CO2 and Humidity is available
• Updates reading every second on the meter, output to PC every 2 seconds
• Auto / Manual power off
• Factory calibrated

Specifications

• Measuring Range
• CO2: 0~9999ppm

• (5001~9999 out of scale)
• Temperature : -10~60°C (14~140°F)
• Humidity : 0.1% ~ 99.9%RH
• Dew Point : -20.0~59.9°C
• Wet Bulb : -5.0~59.9°C

• Resolution : 1ppm,0.1°C/°F, 0.1%RH
• Accuracy :

• C02 : ±30ppm ±5% of reading within 0~5000ppm (other ranges are not specified)
• Temp : ±0.6°C / ±0.9°F
• Humidity : ±3%RH (at 25°C, 10~90% RH); ±5%RH (at 25°C, others)

• Warm-up time : 30 seconds
• Response time

• CO2 : <30 seconds (90% step change)
• Temp : <2 mins (90% step change)
• RH : <10 mins (90% step change)

• LCD size : 26*44mm
• NO RELAY
• Operating condition : 0~50°C, 0~95%RH (avoid condensation)
• Storage Condition : -20~50°C, 0~95%RH (avoid condensation)
• Meter size : 205 x 70 x 56mm ( L*W*H)
• Dimension : 169(L) x 78.3(W) x 43.4(H)mm
• Weight : 200g

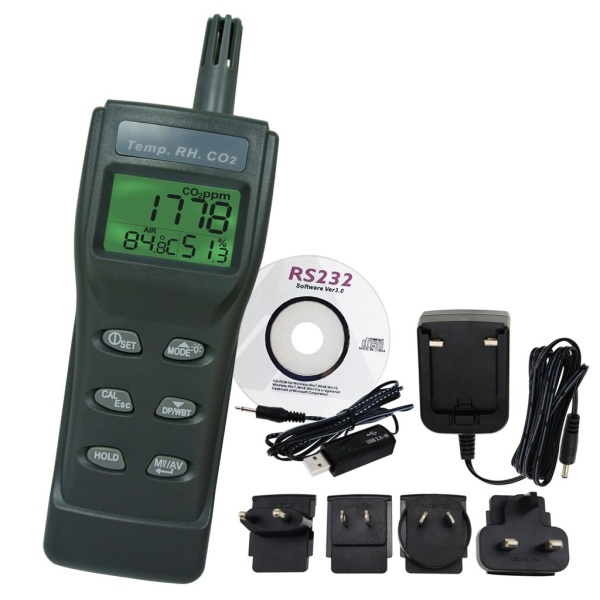

Set Includes

• 1 x CO2 meter
• 1 x CD Software & USB Cable
• Operation Manual

SKU: 159 Category:
