Industrial Digital 4-Channel K /J/ T / E/ R / S/ N Type Thermocouple Thermometer & Datalogger

Availability:

In stock


$326.82

In stock

This 4 Channel K /J/ T / E/ R / S/ N type thermocouple datalogger thermometer is the best tool for multiple measurements. It has data logging capacity up to 16,800 records. The temperature measurement can be view in either °C / °F / K unit.

Can be use in different fields such as Industrial, Refrigeration, Laboratory, Ventilation, Automotive, Storage, Research, Agriculture, Biotechnology, Chemical Industry, Food Processing, Energy Management etc.

Features

• Measure [T1, T2, T3, T4] readings or differential [T1-T2] & [T3-T4]
• HOLD function to freeze current readings
• 15 minutes auto power off function which can be disabled
• Programmable temperature HIGH/LOW alarm limit for 4 Channels
• Switch button for different type of thermocouple (K /J/ T/ E/ R / S/ N)
• Switchable temperature unit (°C / °F / K)

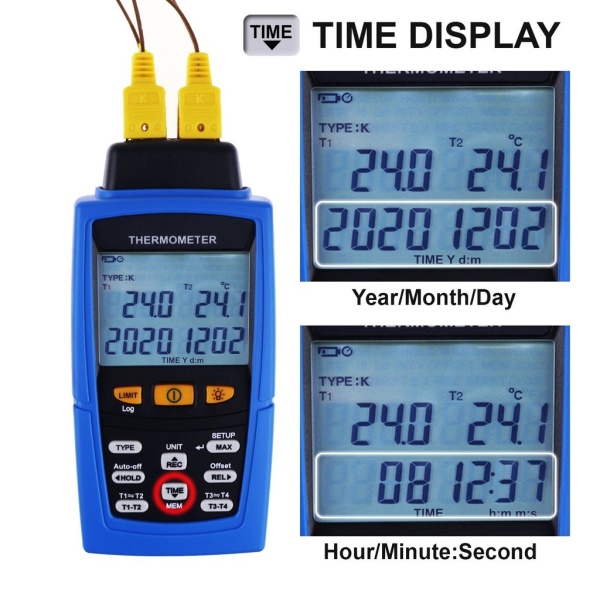

• One button press to see Real time display (year-mon-date,hour-min-second)
• Temperature offset function to compensate for the error
• MAX/MIN/AVG value
• Relative value measurement
• Offset value setting
• Auto ranging function
• ON/OFF Backlight and alarm function
• Auto and manual recording of data
• Supported operating systems: XP / Windows7 / 8.1 / 10

Specifications

• Display: 4 channel and 4 digit LCD
• Input limit: Maximum input 24V DC or AC
• Datalogging capacity: 16,800 Auto recording / 200 manual recording
• Save interval: 1 second~24 hours
• Electrical Specification: Accuracy is specified for ambient temperatures between 18~28°C (64~82°F)

• TYPE-K Range: -200~1372°C (-328~2501°F)
• TYPE-J Range: -210~1200°C (-346~2192°F)
• TYPE-T Range: -250~400°C (-418~752°F)
• TYPE-E Range: -210~1000°C (-346~1832°F)
• TYPE-R / S Range: 0~1767°C (32~3212°F)
• TYPE-N Range: -150~1300°C (-238~2372°F)

• Resolution:

• 0.1 – K / J / T / E / N 000°C
• 1 – R / S / K / J / T / E / N 000°C

• Accuracy:

• K/J/E/T/N Type: ±(0.05% rdg + 0.7°C / 1°F Below-100 °C (-148 °F): K, J, T, E add 0.15% reading. N add 0.45% reading
• R/S Type: ±(0.05% rdg+3°C /5.4°F
• Temperature coefficient: 0.05% ±0.07°C of reading/°C (0.06°F/°F) outside 18~28°C(64~82°F) specified range

• Temperature Scale: ITS-90

  • Note: Specifications above does not include thermocouple accuracy

• Operating Environment: 0~50°C (32~122°F), <80%RH
• Storage Environment: 0~50°C (32~122°F), <80%
• Weight: approx. 330gms
• Dimension: approx. 168 x 73 x 35mm

 Set Includes

• 1 x Thermocouple thermometer
• 1 x USB Cable and Installation disc
• Instruction Manual
