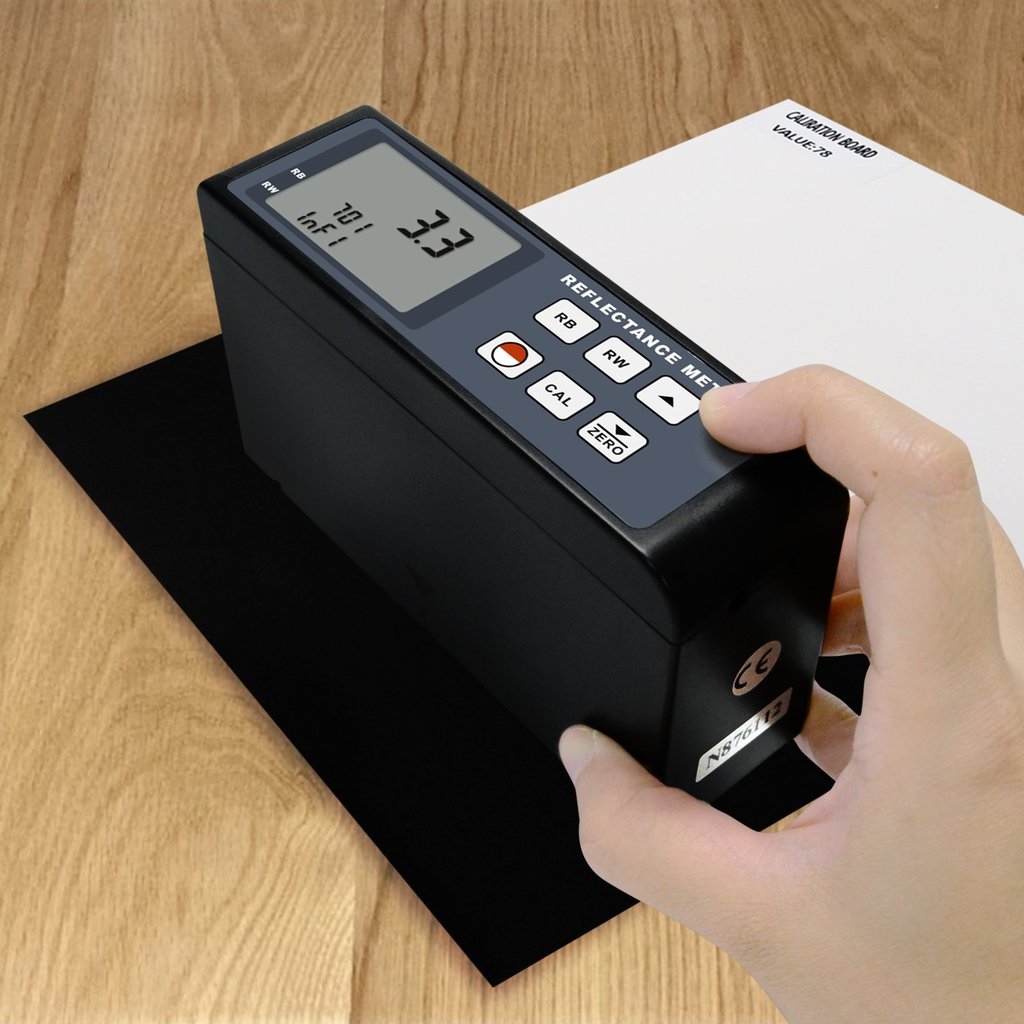

Portable Digital Reflectance Meter w/ 0-100 Range


In stock


In stock

This Reflectance Meter (Cryptometer) can measure the transparency extent of coating, grease, film, plastic products, organic products, and the reflectivity of solid surfaces (such as stereo movie screens).

It is widely used in coatings, pigments, inks, plastics, printing and dyeing, leather, film screenings and other industries for product quality or standardized inspection and management.


• Use RS-232 data output to connect with PC (Cable and software is not included in the set)
• Auto / Manual power off
• User-friendly and easy to carry


• Range: 0~100
• Resolution: 0.1
• Accuracy: ±1
• Repeatability: 0.3
• Measuring Area: 7 x 14mm (Ellipse)
• The display data is in direct proportion to the reflected light.
• The spectral sensitivity of the instrument is approximately equal to the product of Sc(λ) and y(λ).
• Operation Condition:

• Temperature: 0~40°C
• Humidity: <85%RH

• Size: 141 x 45 x 79mm
• Weight: 310g (Including Batteries)

Set Includes

• 1 x Reflectance Meter (main unit)
• 2 x Standard board (Black and White)
• 2 x Testing Board (Black & White)
• 1 x Optic Cleaning Cloth
• English Operation Manual
• Carrying Case

• Optional RS232 Software CD & Cable

SKU: 229 Category:
