Compact Tri-Axis RF Field Strength Meter & Electromagnetic Radiation Tester 10Mhz to 8Ghz w/ Alarm and Tripod Mounting


In stock


In stock

This meter is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength of 38mV to 20V/m and capable of measuring the frequency range of 10Mz~8GHz.

Commonly used in the following areas/applications:

• High frequency(RF) electromagnetic wave field strength measurement
• RF power measurement for transmitters
• Wireless communication(CW, TDMA, GSM, DECT) application

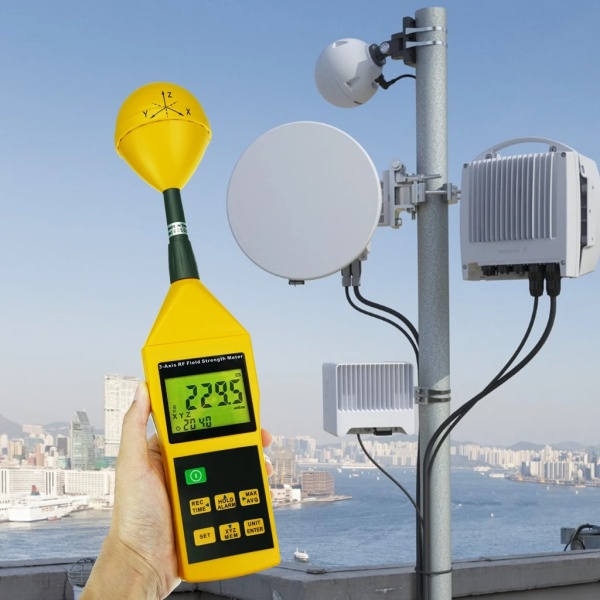

• Mobile phone base station antenna radiation power density measurement
• Wireless LAN(Wi-Fi) detection, installation
• Spy camera, wireless bug finder
• Cellular/Cordless phone radiation safety level
• Microwave oven leakage detection
• Personal living environment EMF safety


• Measurement range:38mV to 20V/m?
• Frequency range:10MHz ~ 8GHz?
• Sensor axis display selection: All axis, X axis, Y axis, Z axis
• Directional characteristic: Isotropic, Tri axis
• Low battery indication
• Data Hold function
• Over Load indication
• Analogue bar graph display
• Clock LCD display
• Units: mV/m , V/m , 繕A/m , mA/m , 繕W/m2 , mW/m2 , 繕W/cm2?
• Display resolution: 0.1mV/m, 0.01V/m, 0.1繕A/m, 0.1mA/m, 0.001繕W/m2, 0.01mW/m2, 0.001繕W/cm2
• Alarm function: adjustable threshold with ON/ OFF?
• Sample rate: 1.5 times per second
• Display value: instantaneous measured value, maximum value, average value, maximum average value
• Calibration factor CAL setting range: 0.10 to 9.99
• Manual data memory and read storage: 200 data sets
• Auto power off: adjustable threshold 0-99 minutes
• Power supply: 9V battery or external AC to DC adapter

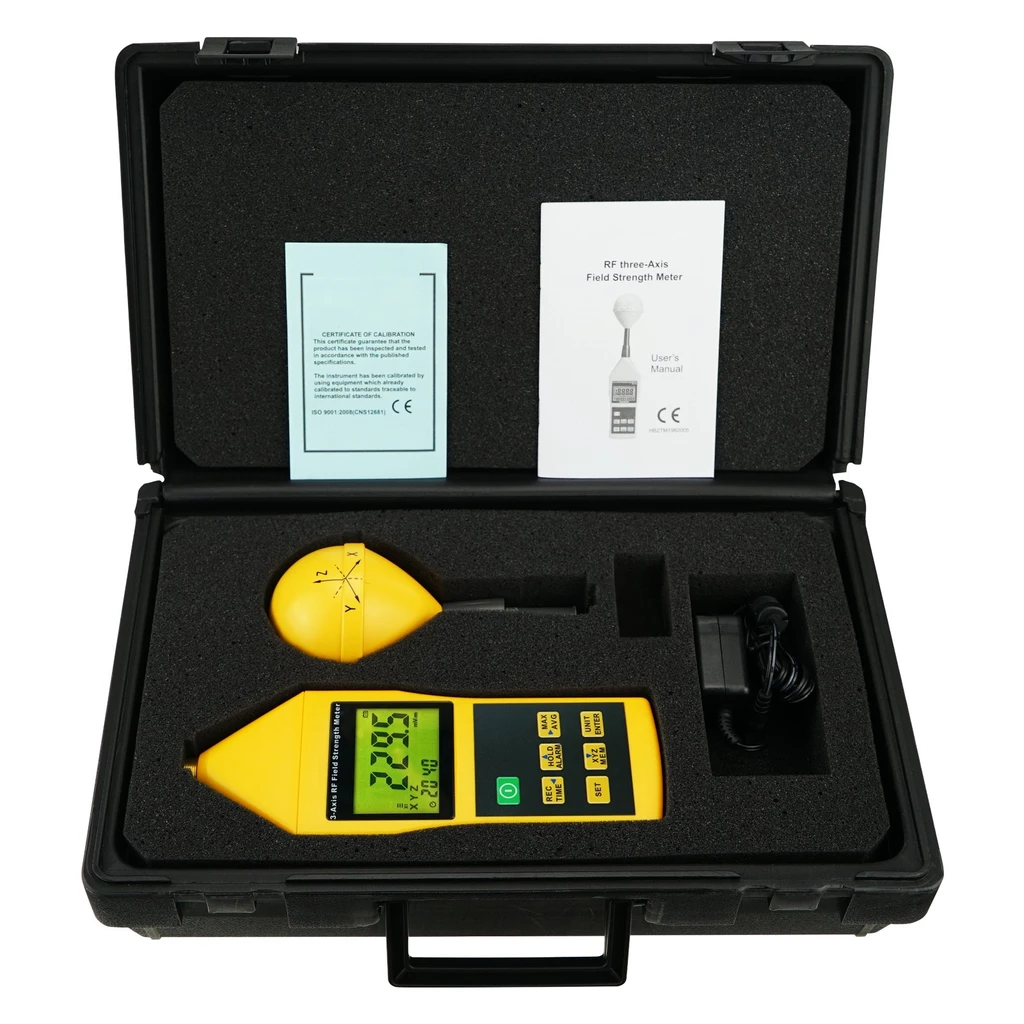

Set Includes

• 1x 3-Axis RF Meter
• 1x User Manual
• 1x 9V battery
• 1x AC adaptor
• 1x Calibration certificate
• 1x Protective hard case with foam
