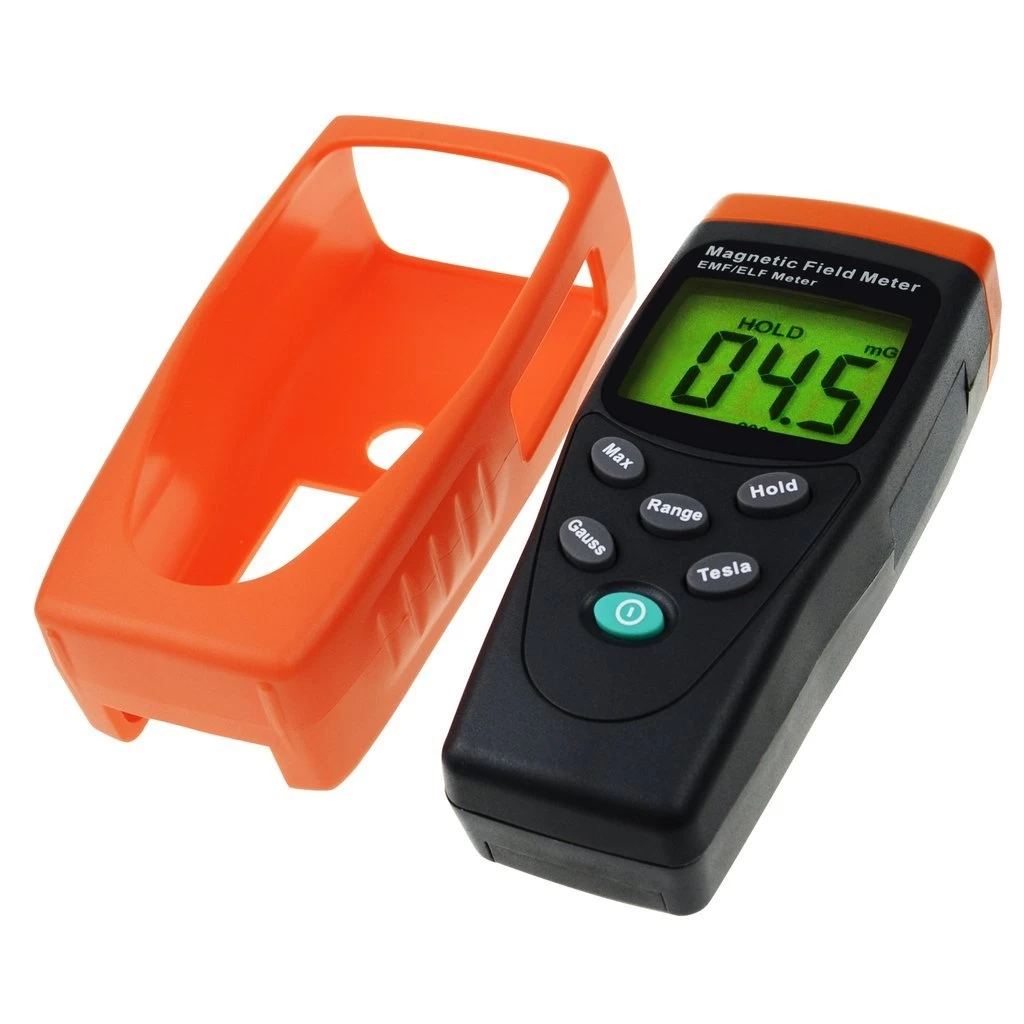

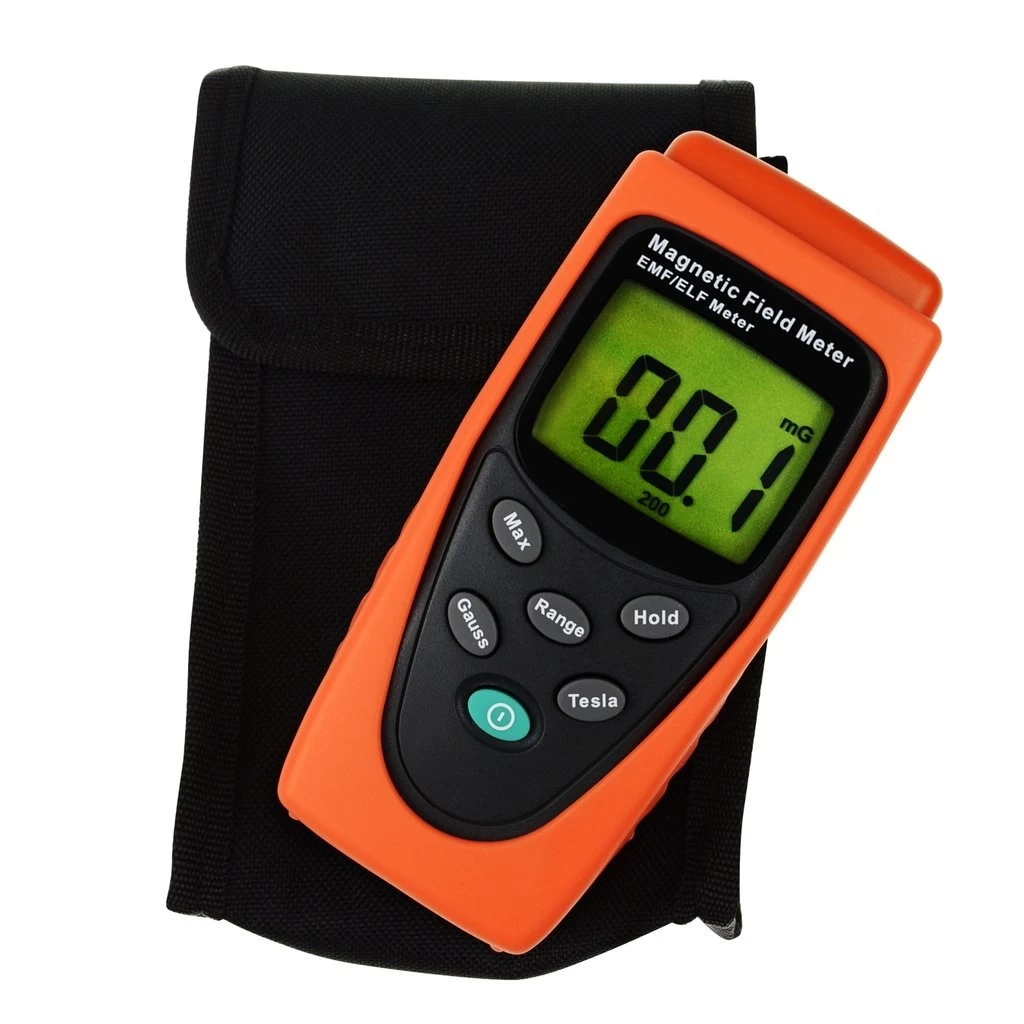

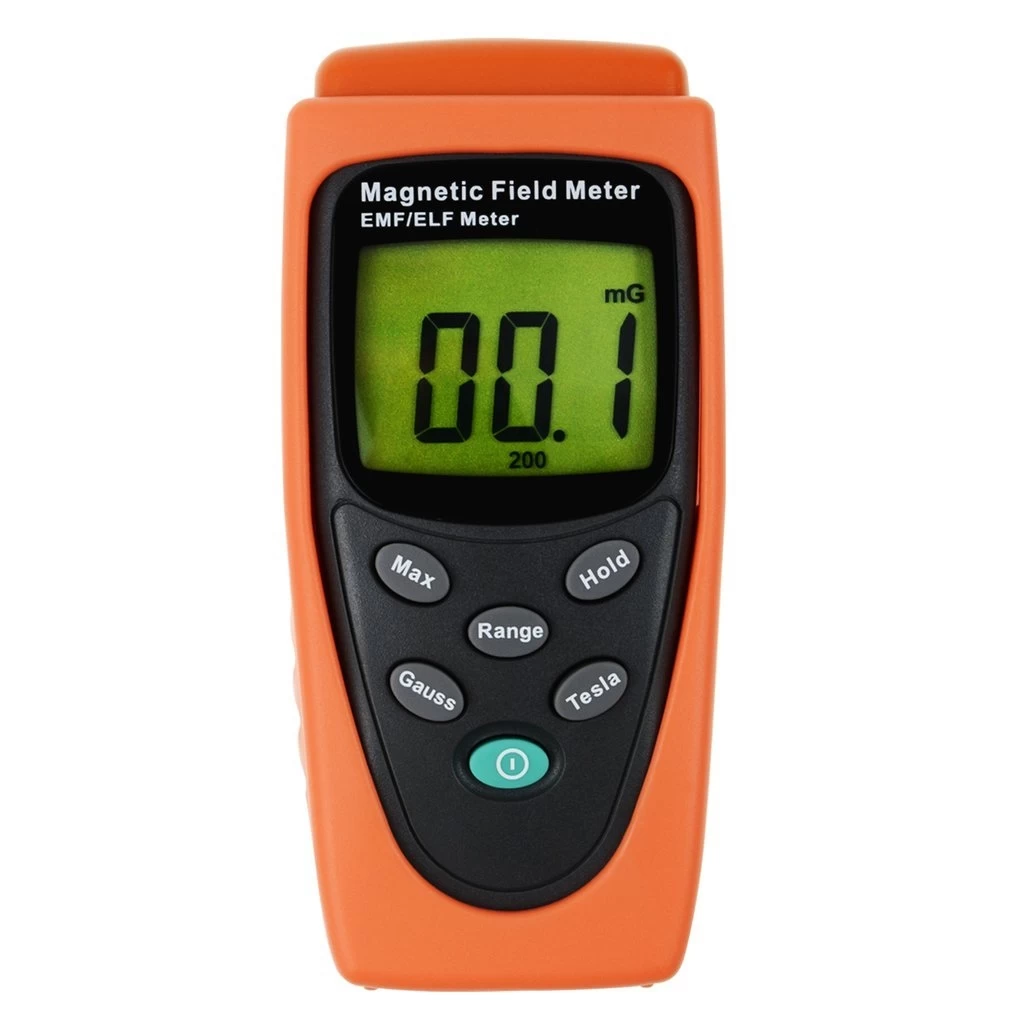

Digital EMF / ELF Single Axis Gauss Meter 30Hz-300Hz

EMF/ELF Single Axis Gauss Meter for Electromagnetic Field Measurement

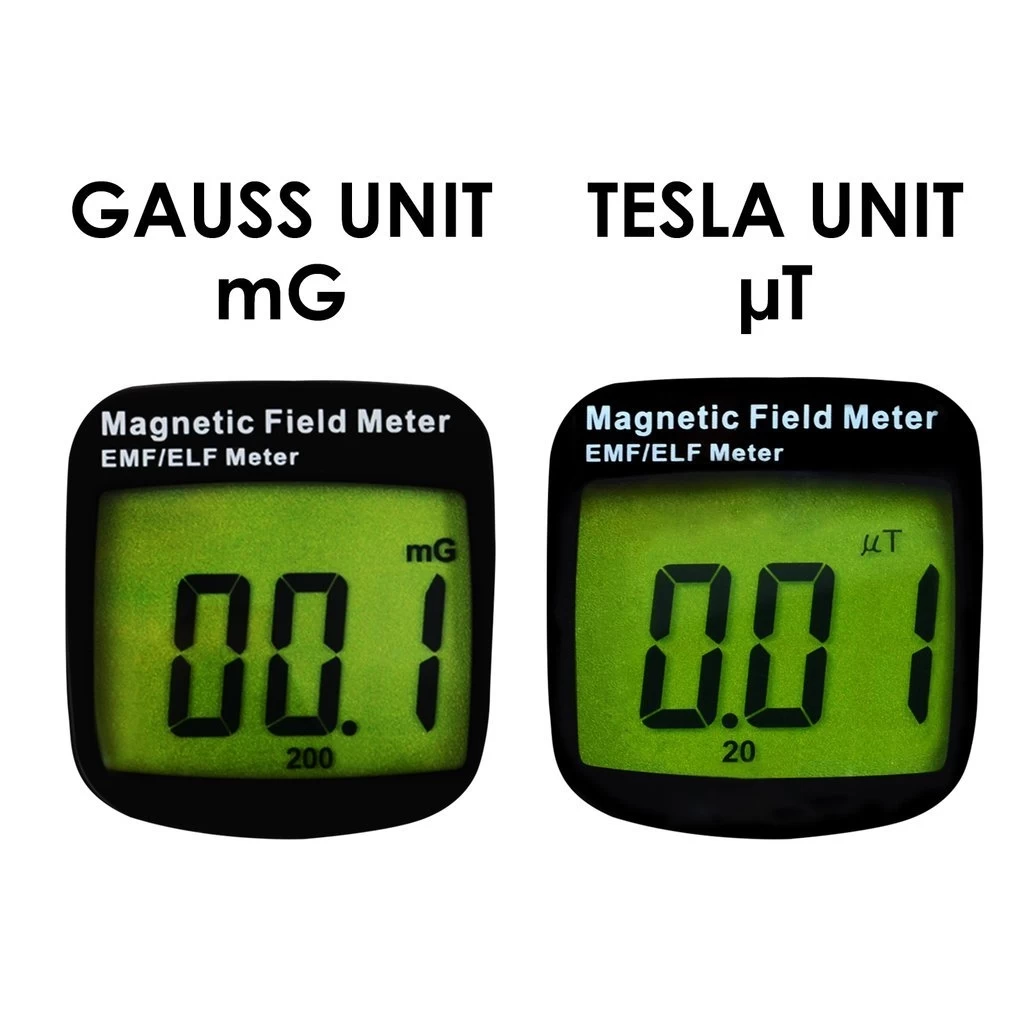

This professional EMF/ELF Gauss Meter is designed to measure extremely low-frequency (ELF) electromagnetic fields between 30~300Hz. It provides readings in both milliGauss (mG) and microTesla (µT), with an easy switch between the two. Featuring a hold function for freezing the display and a maximum reading feature, this meter is sensitive and versatile, capable of measuring up to 2000mG/200µT. The device is calibrated to ±(2.5%+6dgt) at 50/60Hz, making it a reliable tool for high-accuracy measurements.

With a wide measurement range and a user-friendly design, this Gauss meter is ideal for measuring EMF radiation from power lines, household appliances, and electronic devices. Made with professional-grade components in Taiwan, it meets the strict CE and RoHS standards for safety and environmental compliance, ensuring it is free from hazardous materials.

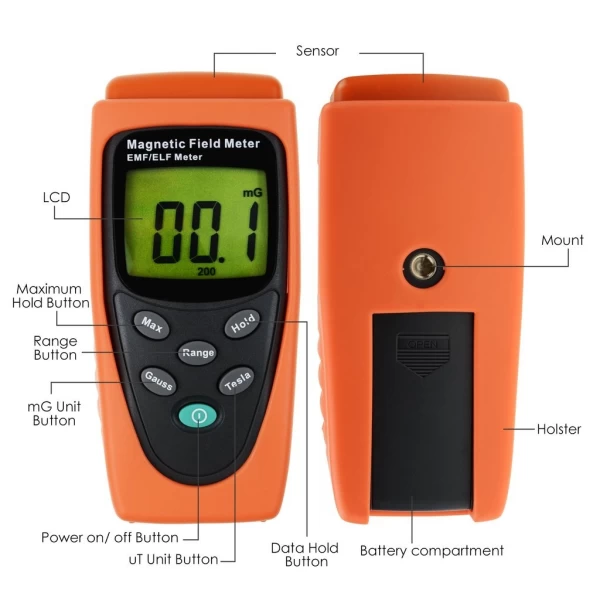

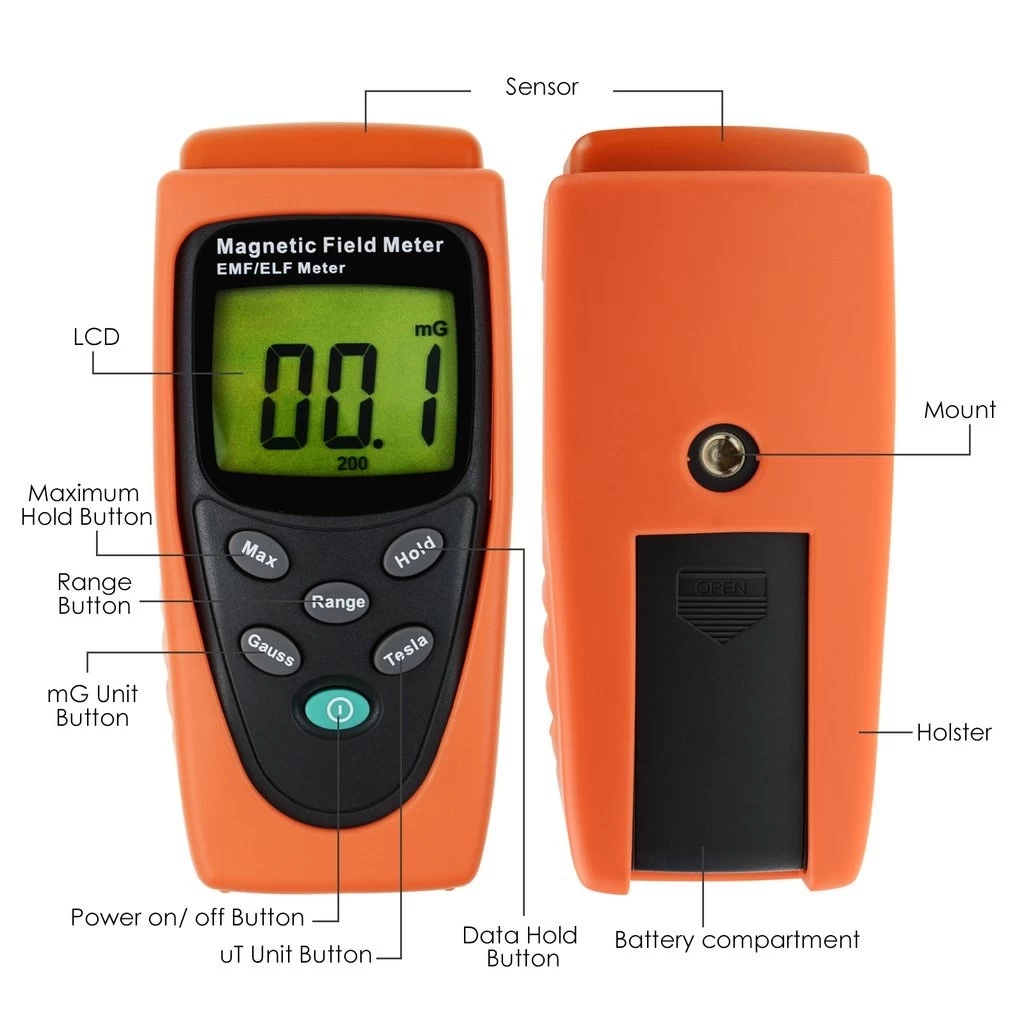

Features

• Professional Quality: High-grade construction, designed for reliable use in various environments.
• Data Hold Function: Freezes the displayed result for easy review.
• High Accuracy: ±(2.5%+6dgt) at 50/60Hz over a range of 200/2000mGauss (20/200µTesla).
• Maximum Hold Function: Displays the highest reading during measurement.
• Range Display: 20, 200, and 2000mG options for versatile measurement.
• ELF Frequency Bandwidth: Measures between 30Hz and 300Hz, ideal for extremely low-frequency applications.
• Single Axis Sensor: Sampling rate of 2.5 times per second for accurate readings.
• Over Range Indicator: Alerts the user when the measurement exceeds the maximum limit.

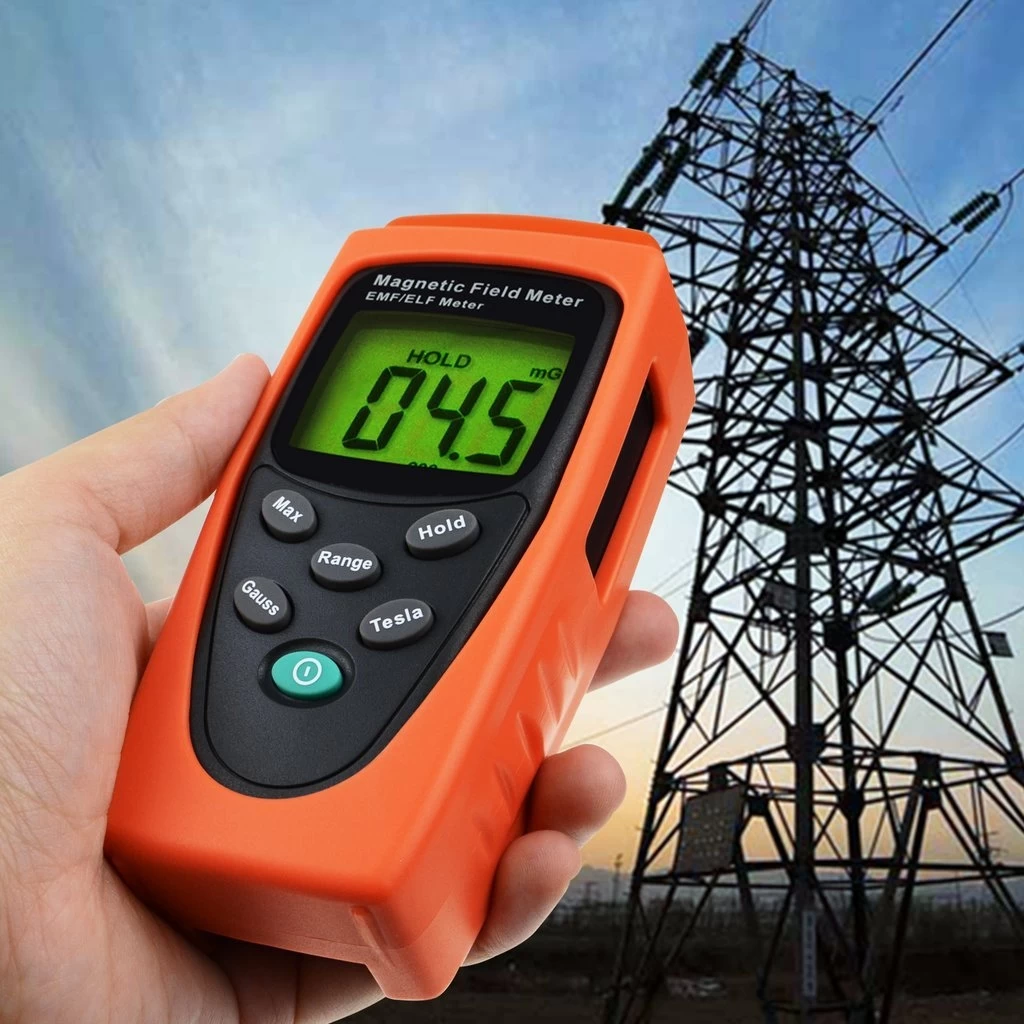

• Wide Application: Measures electromagnetic radiation from electrical appliances, power lines, and more.
• CE and RoHS Certified: Complies with European safety and environmental standards.

Specifications

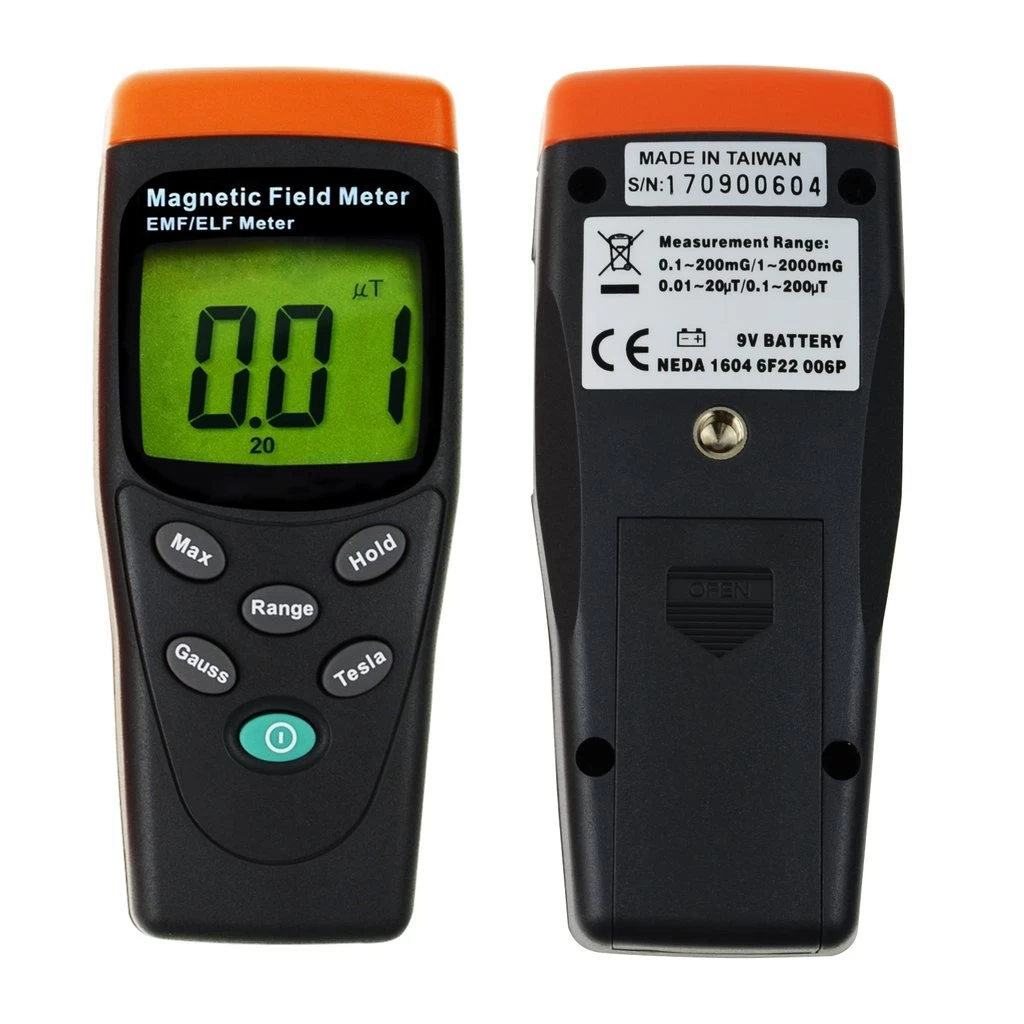

• Display: 3-1/2 digit LCD with 1999 maximum reading.
• Measurement Range: 200/2000mGauss, 20/200µTesla.
• Resolution: 0.1/1mGauss or 0.01/0.1µTesla.
• Frequency Response: 30Hz to 300Hz.

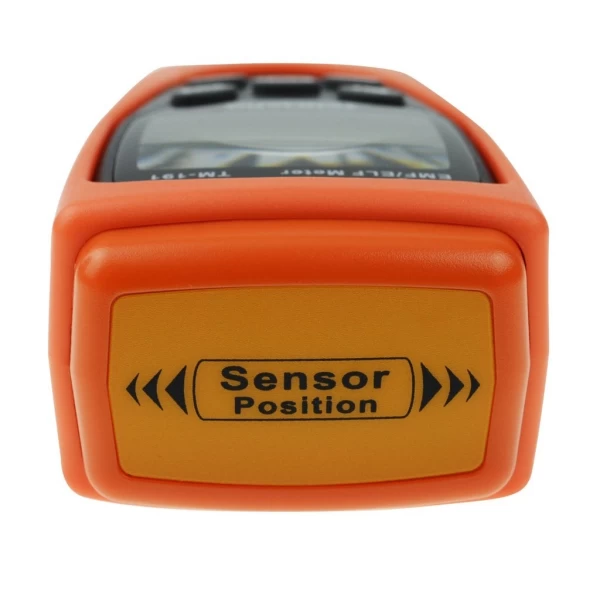

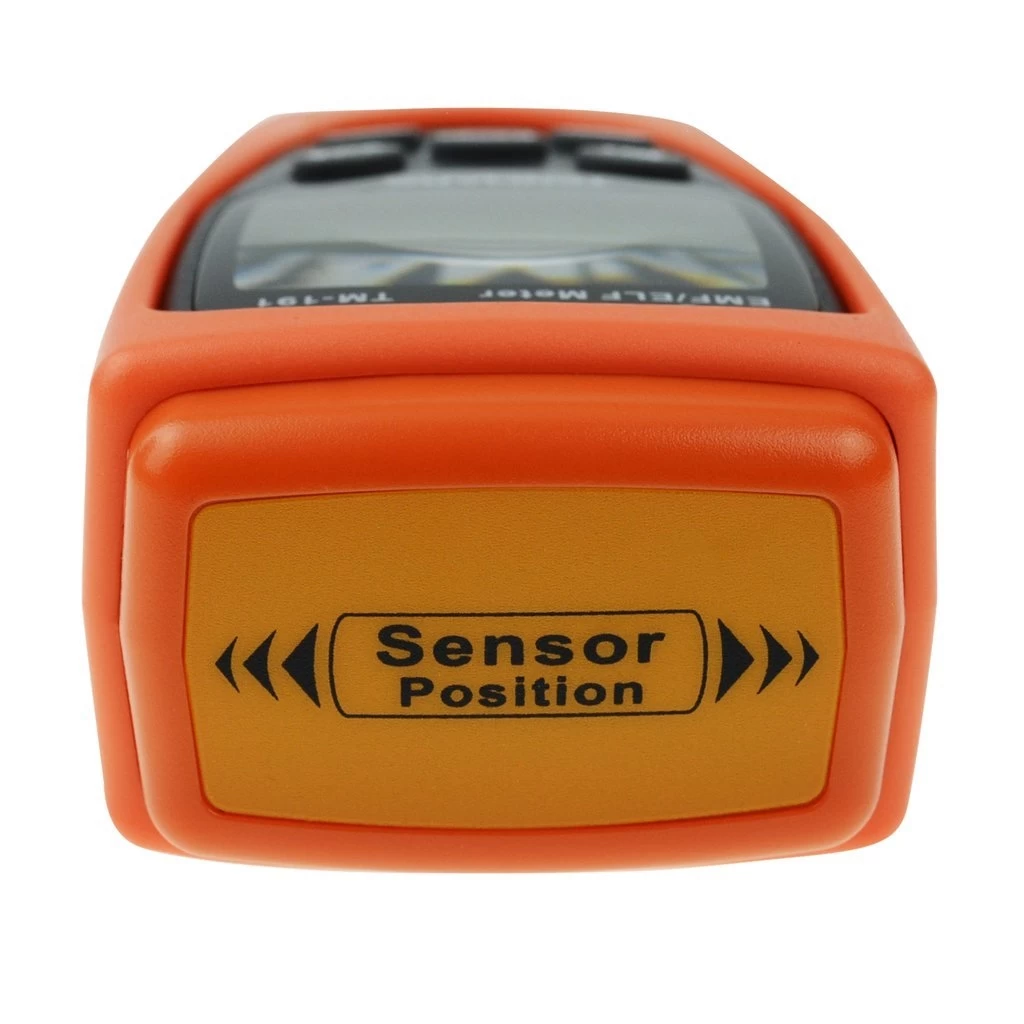

• Sensor Type: Single Axis.
• Accuracy: ±(2.5%+6dgt) at 50Hz/60Hz.
• Sample Rate: 2.5 times per second.
• Overload Indicator: LCD display shows “OL” when over range.

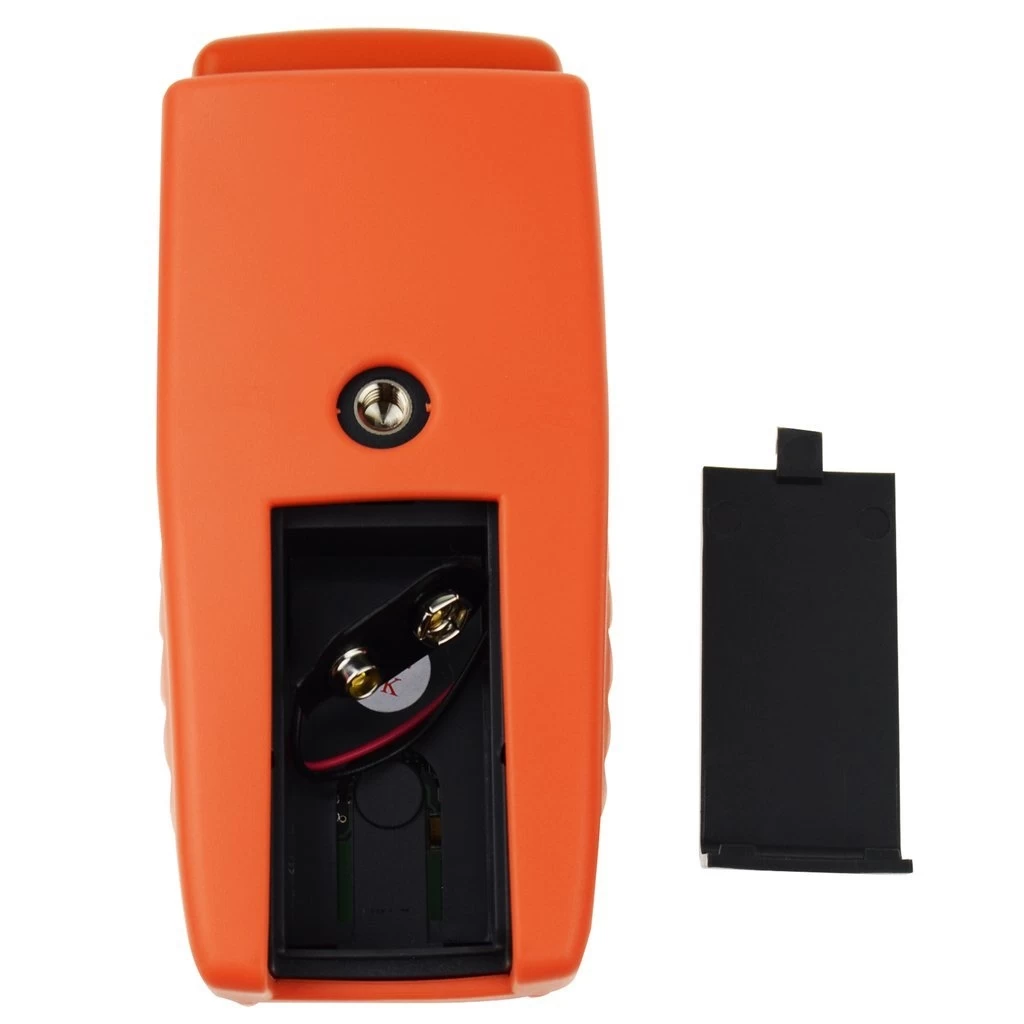

• Battery Life: Approx. 100 hours.
• Operating Altitude: Up to 2000m.
• Operating Environment:
  • Temperature: 5°C to 40°C
  • Humidity: <80% RH

Warranty: 1-year warranty included.
