Digital Clamp Multimeter for AC/DC Voltage, Current, Resistance & Diode

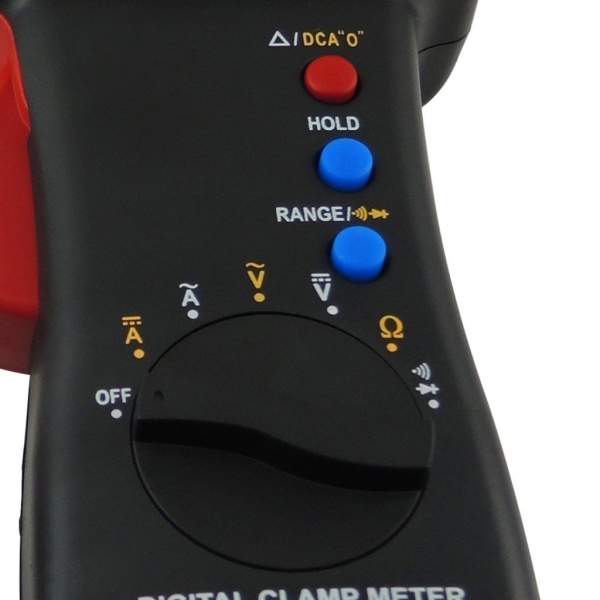

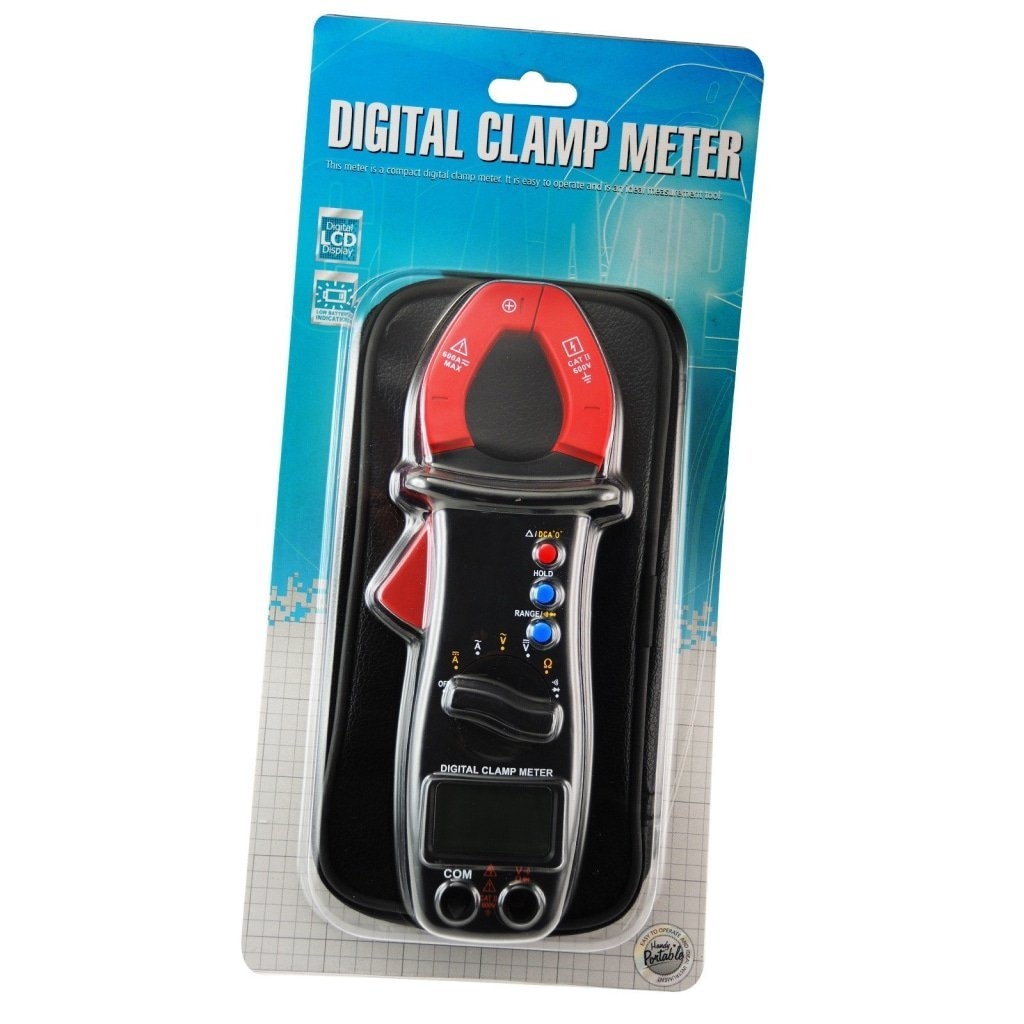

Digital Clamp Multimeter

This Digital Clamp Multimeter is designed for precise measurements with its 3 ¾-digit autorange display. Ideal for measuring DC and AC voltage, DC and AC current, resistance, diode functionality, and continuity, it features a 33mm jaw opening for easy operation and versatility in various applications.

Features

• Display: 3 ¾-digit LCD with a maximum reading of 3999.
• Measurement: DC and AC voltage, DC and AC current, resistance, diode, and continuity.
• Overload Protection: Ensures safety against overcurrent and overvoltage conditions.
• Data-Hold Function: Captures and retains measurement readings for easy viewing.
• Zeroing Function: Allows for zero adjustment of readings for greater accuracy.
• Compliance: IEC-61010 CATII for safe operation.

Specifications

• Display: 3 ¾-digit LCD with a maximum reading of 3999.
• Negative Polarity Indication: Automatically displays a negative sign “-” when applicable.
• Overrange Indication: Displays “OL” when measurements exceed the range.
• Sampling Rate: Approximately 3 times per second.
• Jaw Opening Capability: 33mm.
• Max. Measurable Conductor: Ø28mm.
• Operation Environment: 0°C~40°C, <75% RH.
• Temperature Coefficient: 0.2 x (specified accuracy)/°C for temperatures <18°C or >28°C.
• Storage Environment: -10°C~50°C, <85% RH.
• Size: 194 x 71 x 38mm.
• Weight: Approximately 205g (including battery).
