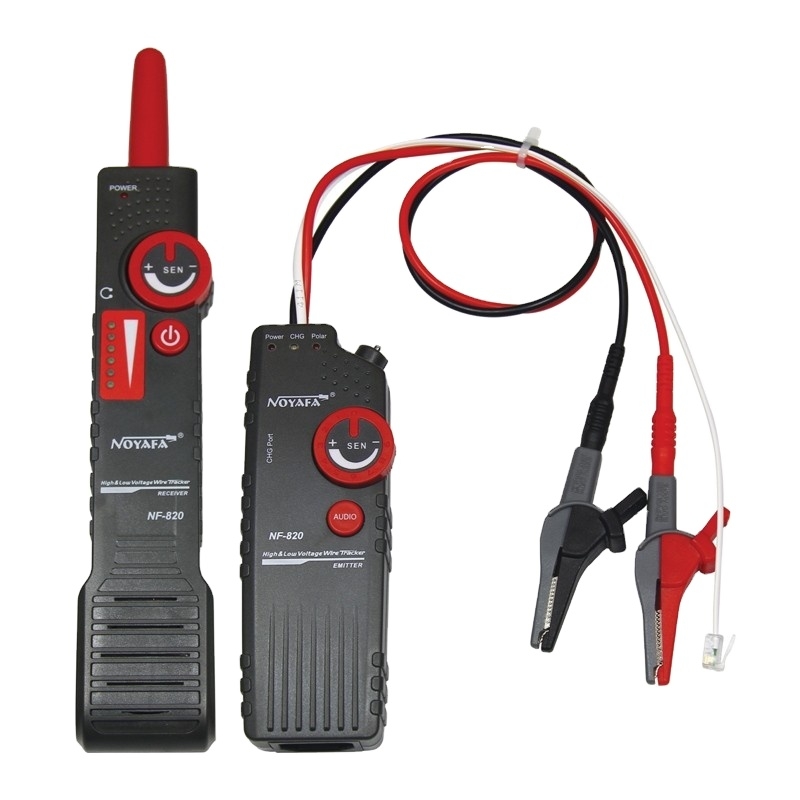

Professional High & Low Voltage Electrical Wire Tracker

Availability:

In stock


$157.52 $179.64

In stock


This high and low voltage wire tracking is designed for tracing live wires (up to 220VAC)! Whether you are an electrician or in another field working on high-voltage wiring, this device assists you in finding and following your wire up to a distance of 6000 feet, from as far as 6 feet away! With such exceptional range, finding and tracing wires behind walls, floors and even through concrete couldn’t be simpler!

Using any standard computer power cable(not included), the devices toner can be directly connected into standard AC outlets using the toners built-in C14 Plug (IEC 320). The toner can also be connected using the unit’s included heavy duty alligator clips (Banana Jack Style). The alligator clips and the C14 socket can even be used at the same time!

Features

• AC Interference Rejection Circuit
• USB Rechargeable
• Adjustable Signal Strength from 0-6ft
• Rugged Metal Toggle Switch
• Locate Wires up to 6 feet Away
• Soft Flexible Leads
• Banana Jack Alligator Clips
• Adjustable Sensitivity
• Audible and Visual Indicators
• Built-in Headphone Jack (Headphones Included)

Specifications

Toner:

• Max. distance of transmission: 20km
• Max. working current: 40mA-50mA}10%
• Volume Regulate Function: Audio volume level control
• Signal Depth: 2 Meters / 6 Feet
• Charge voltage: 800mA
• Max. signal voltage: 8Vp-p
• Voltage indicate: Low 3.4v LED will flash
• Dimensions (LxWxD): 152 x 55 x 34mm

Tracker :

• Voltage indicate: low 6V LED will flash
• Work temperature: -10C – 50C
• Work humidity: 30%-60%
• Dimensions (LxWxD): 252x 45 x 28mm

Set Includes

1x Tracker
1x Toner
2x Alligator Clips (Installed on Leads)
1x Headphone Set
1x USB Charger
1x USB Charging Cable
1x Soft Carrying Case
1x Manual
