USB Inspection HD Camera Endoscope w/ 6 LED lights


In stock


In stock

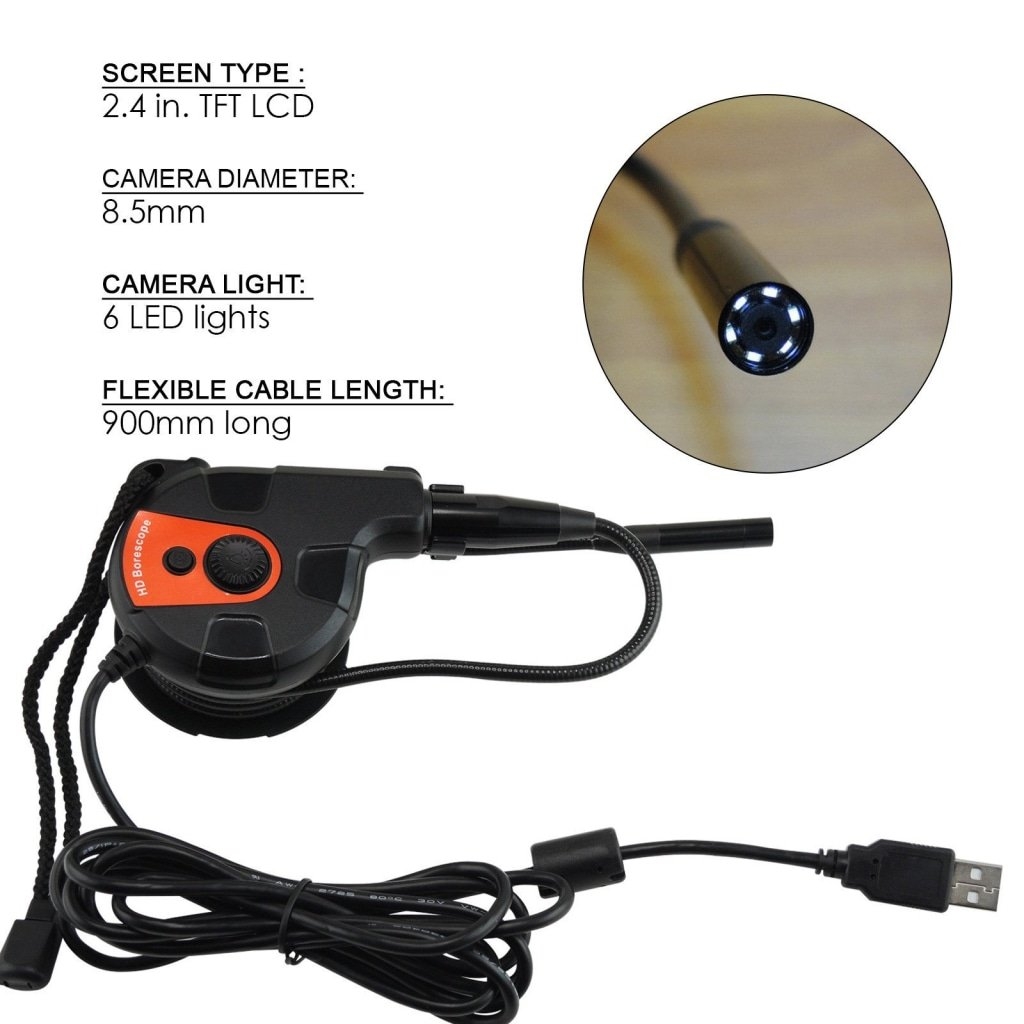

This USB Inspection HD Camera with 8.5mm lens diameter is used to investigate hard-to-reach areas. The built-in 6 LED lights provide a powerful light source which enables you to work in dark areas much more conveniently. It can easily be operated and is compatible with Windows 7/8/vista for data snapshots.

It is a tape style design with hang buckle making it easy to carry and very convenient for the user at home or professional use. This is a very useful tool in inspecting areas under water, gaps and holes, especially with small openings.

Widely used across the following areas and use cases:

• Industrial inspection
• Surveying pipes & equipment
• Furnishing installation
• Automotive applications: car repairing, vehicle maintenance, checking under the hood, etc.
• Household use or domestic maintenance & home improvement: observe drains, gutters, vents, behind walls, inspect buildings for electrical wires, check for pests, termites, etc.

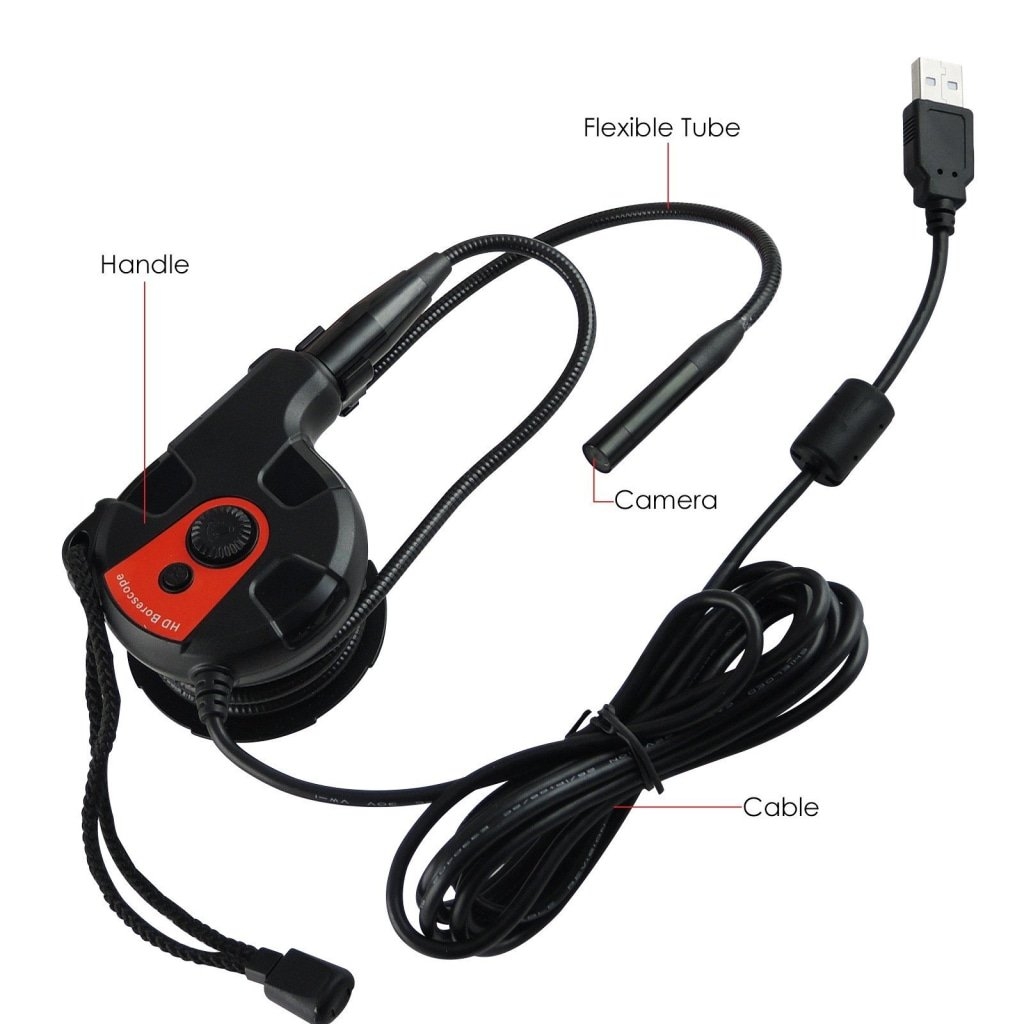

• Tape type USB Inspection Camera
• Flexible Cable
• USB Connection
• Snapshot Buttons
• High-definition (HD) Camera
• Adjustable Dimmer LED Lighting
• PE covered cable with ABS tape-style handler
• Water resistant camera head with 6 dimmable white LED lighting
• Snapshot and LED lighting adjustable


• Resolution:

• 640 x 480 pixel (default)
• 1280 x 720 pixel
• 1600 x 1200 pixel (YUY2)

• Frame rate: 30fps @24MHz, VGA
• Sensor: 24 Bit RGB colour (1/5″ CMOS)
• White comparison: automatic
• Exposure to light: automatic
• Video format: AVI
• Camera Illumination: 6 LED’s white
• USB port: USB 1.1/2.0
• Power Supply: 5V via USB
• Ambient/Operating temperature: 0~45°C
• Cable Length: approx. 200cm
• Effective length of Borescope: 80cm
• Minimum Bending radius: 5cm
• Diameter of camera head: 8.5mm
• Lens Coverage: 66°
• Focus: 5~15mm
• Flexible cable neck:

• neck length with handler: 983mm
• neck length: 900mm long
• cable neck diameter: 4.8mm

• Material: PE covered cable with ABS tape-style handler
• Weight without accessories: approx 331g
• Compatible OS: Windows 7/8/vista for snapshot

Set Includes

• 1 x Tape Type USB Inspection Camera
• 1 x Software CD
• 1 x Instruction Manual
