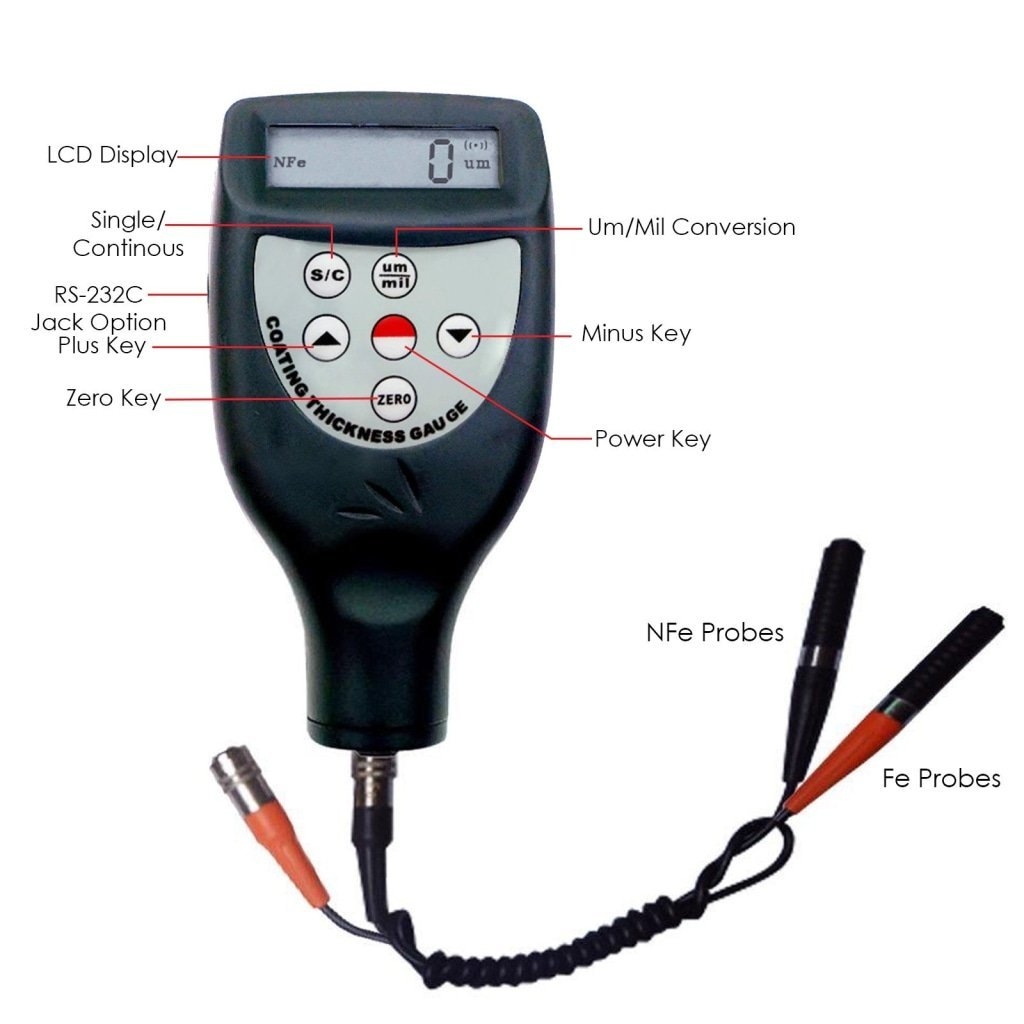

Advanced Industrial Paint Coating & Thickness Meter Gauge with F & NF Probes


In stock

$569.90 $599.90

In stock

A coating thickness meter that conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base that can be used on many applications even on applications that require greater precision.

It is the most advanced and top quality rugged meter that uses magnetic induction and eddy current principle to measure thickness of magnetic coating on non-magnetic base.

Lightweight and equipped with F & NF probes it carries out high-speed and accurate results on either single or continuous measuring mode and covering a wide range of 0-1250um or 0-50mil. The F & NF probes cable is long enough to measure the thickness of the coating of hard-to-reach areas.


• Capable of measuring magnetic & nonmagnetic materials in high resolution and wide measuring range of 0-1250umor 0-50mil
• Has CE markings, conforms with the essential health and safety requirements set out by the European Directives
• Conforms and passed the standards of international standards including ASTM,DIN,BS and ISO-2178 as well as ISO-2360
• With automatic substrate recognition
• Provides single & continuous measurement mode
• With manual and automatic shut down
• With Zero Calibration for both F & NF probes
• Lightweight and provides single-handed menu navigation
• With FREE Protective & sturdy carrying case with contoured rubber compartments that fits the device perfectly. When closed, it then sandwiched between rubber foam to achieve optimum shock absorption


• Operating principle: magnetic induction/eddy current (F/NF)
• Display: 4 digits, 10mm LCD
• Measuring Range: 0-1250um/0-50mil
• Resolution: 0.1um (0~99.9um), 1um (over 100um)
• Accuracy: ±1-3%n or ±2.5um or 0.1mil(which ever is greater)
• Operating Conditions: 0~50°C (32°F-104°F) Temperature, <80% Humidity
• With 2 separate probe(s)
• Automatic substrate recognition without guessing / choosing the probes
• Dimensions: 126 x 65 x 27mm
• Weight: 81g

Set Includes

• 1 x Paint Coating Thickness Meter
• 4 Calibration foils
• 1 x F Probe
• 1 x NF Probe
• 1 x Aluminum & Iron substrates
• 1 x Operations Manual

SKU: 182 Category:
