Industrial Paint Coating Thickness Gauge w/F/NF Probes & Big LCD


In stock

$639.90 $679.90

In stock

This advance coating thickness meter with 0 to 1250μm (0 to 50 mil) wide measuring range for automotive and painting applications. Its a top quality rugged meter that uses magnetic induction & eddy current principle to measure thickness of magnetic and non-magnetic surface and detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous, F) or an insulating coating on a non-magnetic conductive substrate (non-ferrous, NF).

It has built-in NF (NFe) probe used in procedure turbulence current test and F (Fe) that uses magnet inductive. It carries out fast and accurate results. Plus, you have the option to connect the meter to the computer to collect and retrieve the Measured Data through optional software and cables (not included in the set).

It’s usage of Microcomputer LSI circuit advanced microprocessor technology and crystal time base guarantees that measurement has the highest level of accuracy with fast measuring time.

In addition, you have the option to measure either by single or continuous mode, automatically switches from NF to F mode and vice versa, stores 99 groups of measurements, Max / Min / Ave, backlight and large LCD screen.


• Stores up to 99 groups of measurement
• Big LCD screen with backlight, display more measurement details
• Meets the standards of both ISO2178 and ISO2361. Suitable for the laboratory and for use in harsh field conditions
• Uses durable, long-lasting components, including a strong and lightweight ABS plastic housing assures maintenance-free
• Wide measuring range (0 ~ 1250 μm / 0 ~ 50 mil) and high resolution
• Automatic substrate recognition
• Built-in F & NF probe

• F Probe measures the thickness of non-magnetic materials such as paint, plastic porcelain enamel, copper, zinc, aluminium, chrome on magnetic materials such as iron, nickel etc. It is often used to measure the thickness of a galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile and paper
• NF Probe measures the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminium, brass and non-magnetic stainless steel etc

• Best use in laboratory and in harsh field conditions
• Digital display with no guessing errors
• Single & Continuous measurement mode
• Switchable between mils and microns
• Manual and automatic shut down
• Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
• Automatic Calibration (when no other metal substrate nears the probe sensor upon switching on)


• Probes: Built-in F probe & NF probe
• Screen Display : 4 digits, 10mm LCD
• Coating Thickness Range: 0-1250μm / 0-50mil
• Resolution

• 0.1μm (0~99.9μm)
• 1μm (over 100μm)

• Accuracy: ±1-3%n or ±2.5μm or 0.1mil (whichever is greater)
• PC Interface: RS232C interface (CD and cable are not included in the set)
• Operating Condition:

• Temperature: 0~50°C (32°F-104°F)
• Humidity: <95%

• Automatic substrate recognition without guessing
• Dimensions: 126 x 65 x 35mm (5.0 x 2.6 x 1.6 inch)
• Weight: 81g

Set Includes

• 1 x Coating Thickness Meter

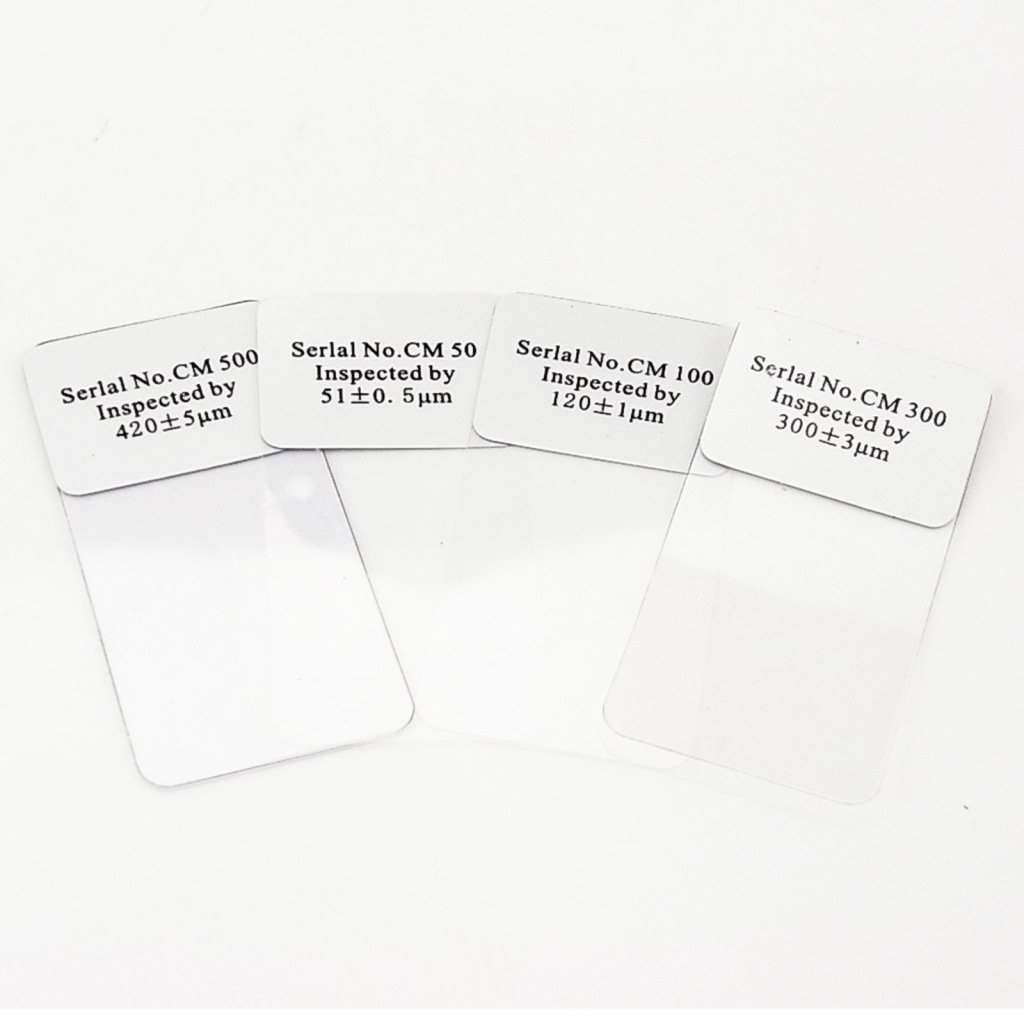

• 4 x Calibration foils
• 1 x Aluminum substrates
• 1 x Iron substrates
• 1 x Instruction Manual
• 1 x Sturdy & Protective Storage Case

• Optional RS232 CD software & cable
