Industrial F & NF Probe Type Non Magnetic Coating Thickness Meter


In stock

$649.90 $679.90

In stock

A Coating thickness gauge is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering fields, and laboratories, as an essential instrument in material protection industry

  1. F Type Magnetic Induction (Iron Base)

• Applications: Measure the thickness of non-magnetic materials on magnetic materials
• Examples: Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc

  1. NF Type Eddy Current (Aluminium Base)

• Applications: Measure the thickness of non-conductive coatings on non-magnetic metals
• Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminium, brass, non-magnetic stainless steel, etc


• Magnetic induction (F) and eddy current (N) measuring methods
• Metric / imperial system selectable
• Manual or automatic power off
• Auto memory of calibration value, auto substrate recognition
• Single and Continuous measurement mode
• Wide measuring range and high resolution
• Use USB/RS-232 data output to connect with PC (Not included in the set)
• Provide Bluetooth data output choice

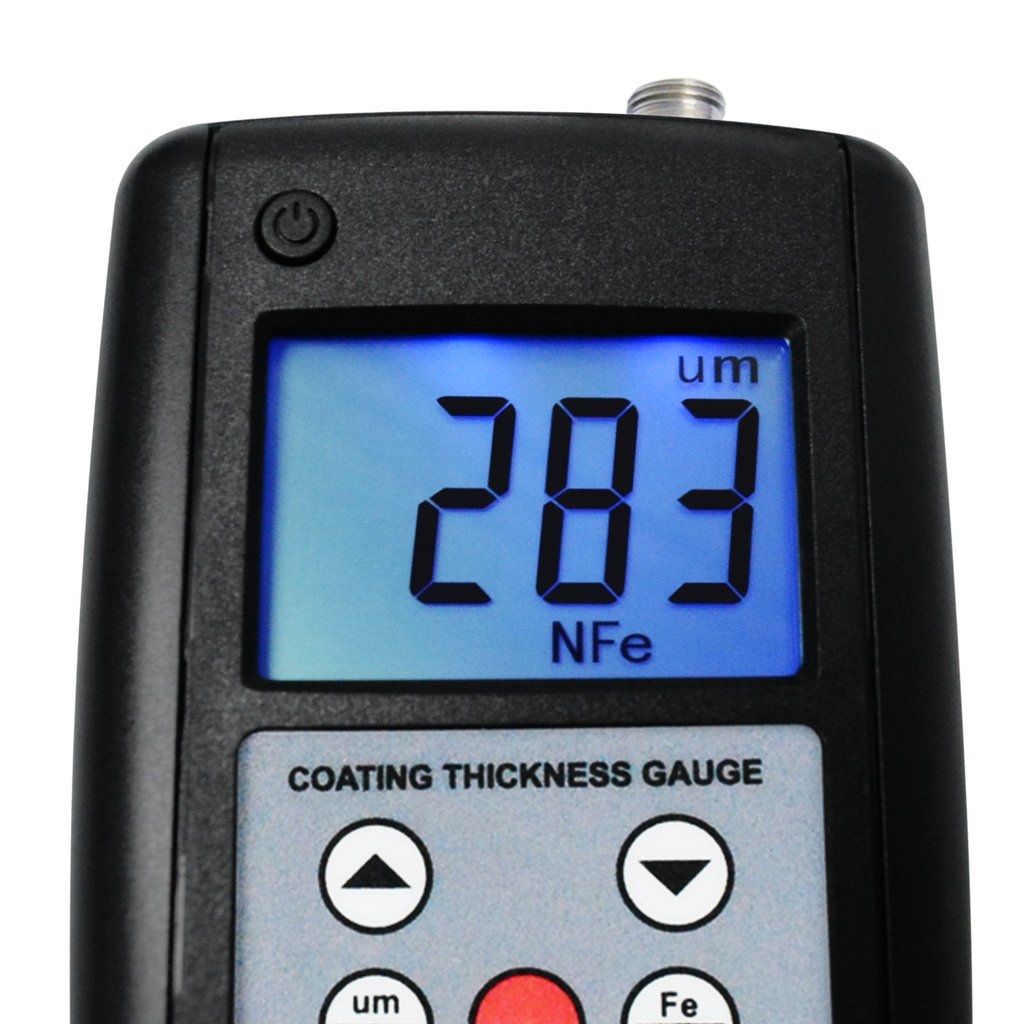

• The digital backlit display gives exact reading with no guessing or errors


• Display: 4 digits LCD, backlit
• Range: 0~2000µm / 0~80mil
• Resolution: 0.1µm / 1µm
• Accuracy: ±1~3%n or ±2.5µm or 0.1mil (whichever is greater)
• Min.Radius Workpiece

• F Type:convex 1.5mm/concave 25mm
• NF Type:convex 3mm/concave 50mm

• Min.Measuring Area: 6mm
• Min.Sample Thickness: 0.3mm
• Operating Conditions

• Temperature:0~40ºC
• Humidity:10~90%RH

• BatteryDimensions: 140 x 72 x 34mm
• Weight: 215g

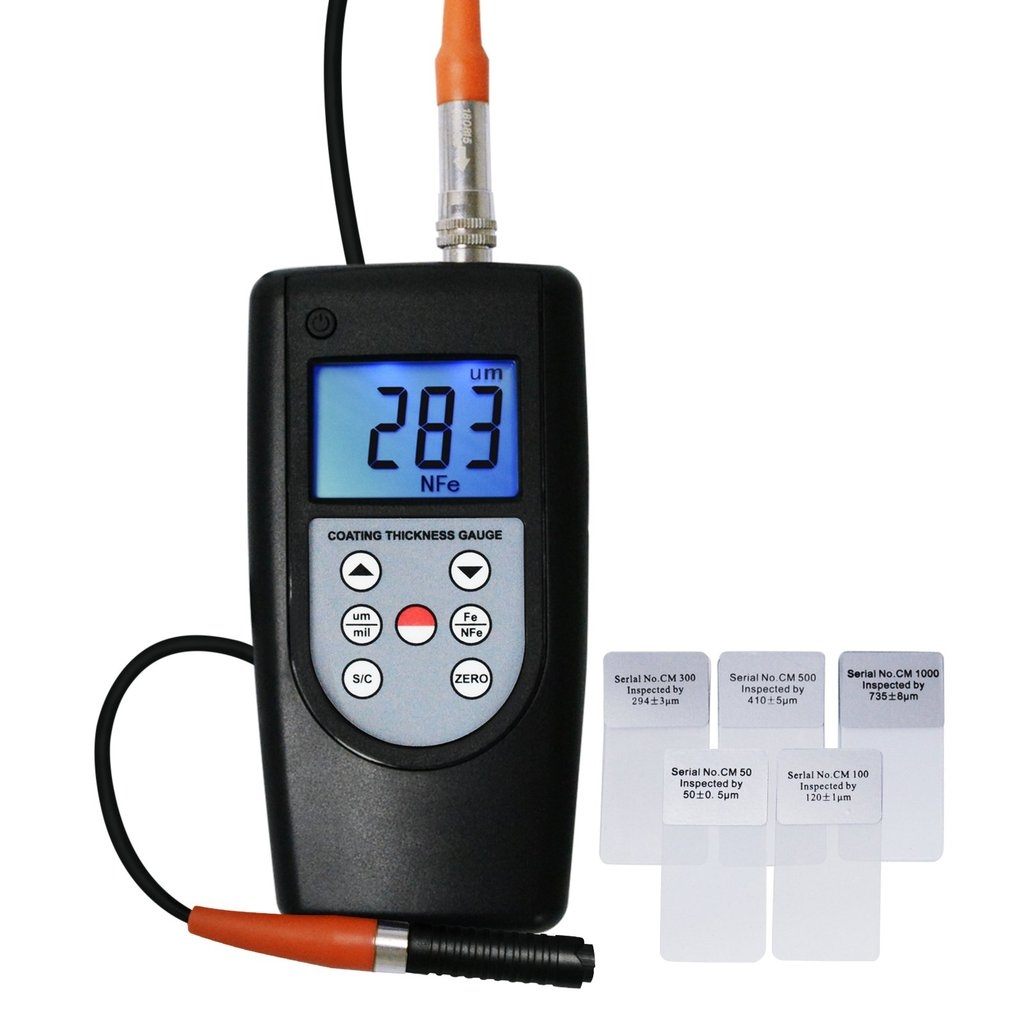

Set Includes

• 1 x Coating Thickness Gauge (main unit)
• 1 x Probe (F & NF Type)
• 1 x Calibration Base (F)
• 1 x Calibration Base (NF)
• 5 x Calibration Foils
• Operation Manual
• Carrying Case

SKU: 180 Category:
