Portable Coating Thickness Guage w/ HD display


In stock

$269.90 $299.90

In stock

This colour-screen portable coating thickness gauge with high definition display can quickly, non-destructively and accurately measure coating thickness. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas.


• Colour-screen HD display with menu operation
• Thickness measurement of non-magnetic coating on magnetic metal substrate surfaces and non-metallic coating on non-magnetic metal substrates
• Single measurement and continuous measurement method
• Automatic substrate identification (magnetic metal and non-magnetic metal)
• Three calibration modes: basic, offset, zero calibration
• MAX/MIN/AVG/DIFF value measurement
• Alarm function for High and Low limit value
• Switchable measurement unit: µm/mm/mil
• Metric/imperial unit
• Data storage function
• Fully automatic four-way screen rotation
• Multi-interface display
• Trend chart function of the last 20 groups of data
• Screen brightness selection
• Automatic shutdown
• Six background colour available


• Measurement range: 0~1500um/0~59mil/0~1.5mm
• Resolution: [0.1μm(<100μm),1μm(≥100μm)]/0.1mil/0.001mm
• Measurement error: ≤150μm ±5μm / >150μm ±(3%H+1μm)
• Magnetic metal substrate

• Minimum diameter: 12mm
• Minimum thickness: 0.5mm

• Non-magnetic metal substrate

• Minimum diameter: 50mm
• Minimum thickness: 0.5mm

• Minimum radius of curvature

• Magnetic convex substrate: 2mm
• Magnetic concave substrate: 11mm

• Size: approx. 70.3 x 36.6 x 149.59mm
• Weight: approx. 136.9g

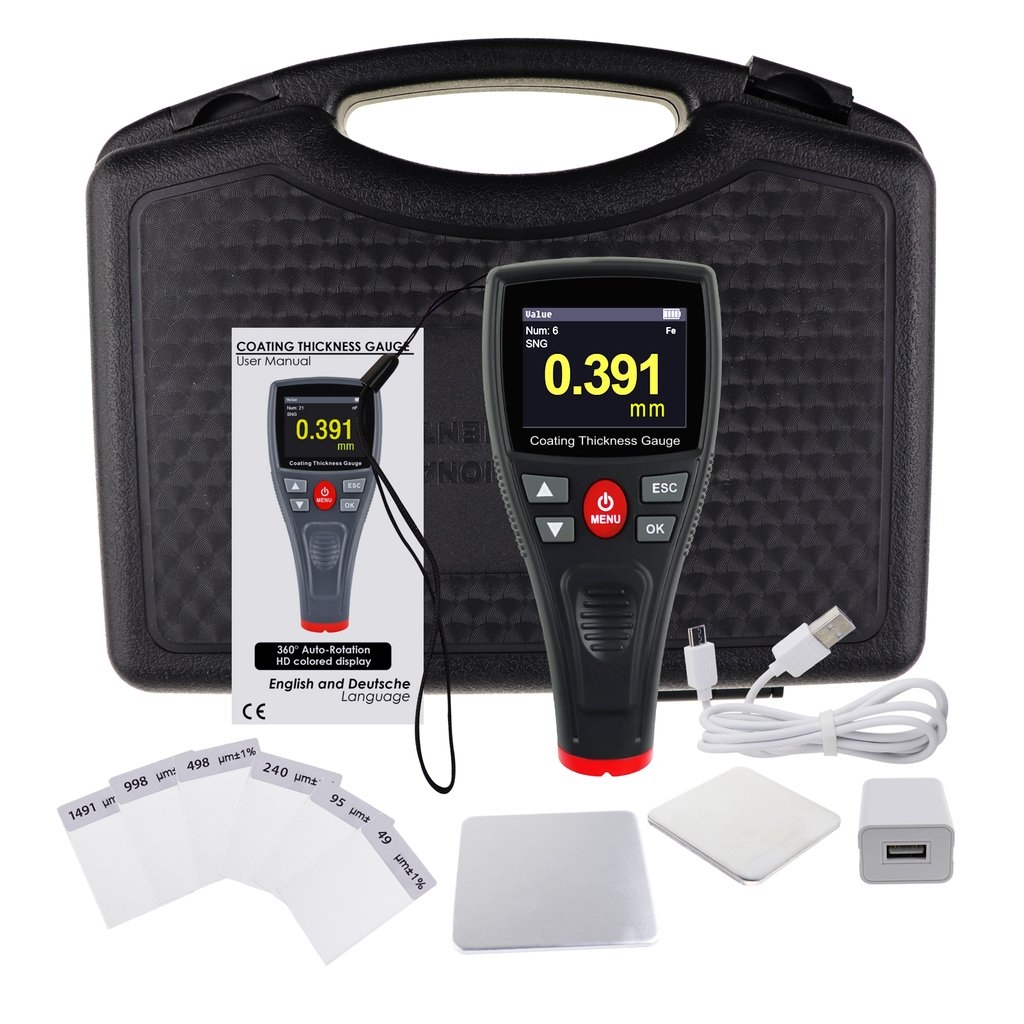

Set Includes

• 1 x Digital Colored Thickness Meter
• 1 x Iron Substrate
• 1 x Aluminum Substrate
• 6 x Calibration plates
• 1 x USB cable and adaptor
• Instruction Manual

SKU: 172 Category:
