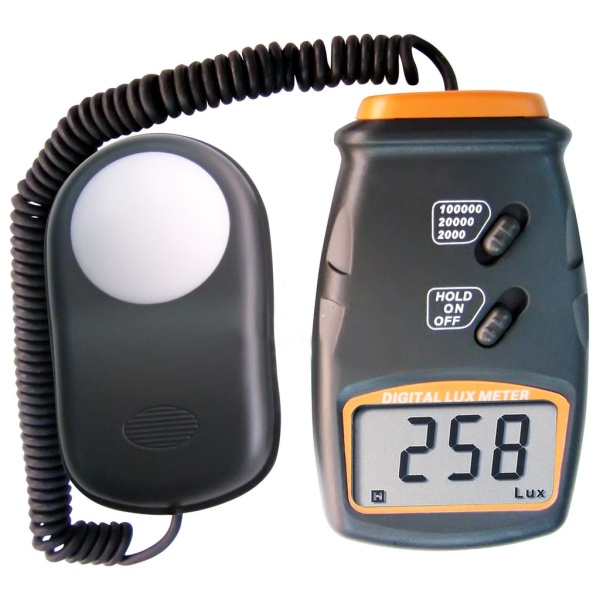

Digital Light Meter 100,000 Lux with LCD for Laboratory and Photography

Brightness or light intensity plays an essential factor in determining the proper exposure for photography and providing correct light intensity for each environment. Don’t risk your next job with inferior testing equipment. Whether you’re checking common areas for safe lighting levels or testing designs for compliance, our light meters get the job done.

This is a useful device for anyone who wants to measure illumination levels. It senses or detects the brightness/lux of any environment. It uses a long-life silicon diode and a spectral response filter fully corrected for light’s angular incidence to ensure stability.

Our hand-held light meter reads the intensity of light falling on the subject and measurements taken from the subject position and can measure up to 100,000 lux. They measure accurately and consistently and are not affected by variances in reflectance of the subject or scene. Because of this, the meter gives an accurate exposure for the majority of situations and subjects.

This device has the approval of European Directives for essential health standards and safety requirements, ensuring you work smarter and safer.

Features

• Data hold function
• CE marking, with approval from the European Directives
• With built-in Low battery indication
• Separate Light Sensor allows user to take measurements at an optimum position and convenient testing
• Auto-Range and Auto Zero-Adjustment
• Easy to read, clear & big 4 digits LCD display € “in all light conditions
• With built-in Low battery indication
• High accuracy in measuring
• Low in power consumption which gives you more operating hours
• Light and portable
• Corrected for Luminous Efficiency function
• Correction factor need not be manually calculated for nonstandard light sources
• With LSI-Circuit to provide high reliability and durability
• With long life silicon photodiode inside

Usage & Applications

• Obtain precise measurements in multiple light measurement ranges. Our compact and rugged light meters are designed for use in workplaces, labs, schools, environmental studies, optics, and real estate inspections to ensure that you and your staff work in the best lit conditions possible.
• Very useful to architecture professionals, light designers or cinematographers
• Useful for indoor and outdoor gardeners in ensuring proper light levels for plant growth.
• Measure luminance in any environment or professional such as illumination control, weather observation and metallurgy building, industry inspection, and agriculture research.
• Monitor building and security light levels with confidence.
• Valid for any application in which measuring or recording illumination is required.

Specifications

• Range Coverage is from 0~100, 000 LUX (3 ranges)
• Ranges:

• 0 – 2,000 LUX
• 2,001 – 20,000 LUX (Reading × 10)
• 20,001 – 100,000 LUX (Reading × 100)

• Accuracy:
• 0 ~ 10,000 Lux: ±4.0% ±0.5 F.S
• 10,000~100,000 Lux: ±5.0% + 10 digits
• Temperature Characteristic : ±0.1% / °C
• Repeatablity : ±2%
• Test rate : 0.2 times / sec.
• One silicon photodiode with filter
• Operation temperature-humidity : 0°C to 40°C (32°F-104°F) 0-70% RH
• Storage temperature-humidity: -10°C to 50°C (14°F-122°F) 0-80% RH
• Over-input :

• Indication of ” 1″ (2,000 Lux/20,000 Lux)
• Indication of “OVER” (100,000 Lux)

• Dimension:

• 106 x 57 x 26mm (photo detector)
• 230 x 72 x 30mm (meter body)
• 150cm (photo detector lead)

• Power: 9V (6F22) x1
• Weight: 190g

Set Includes

• 1 x Lux Meter
• 1 x Free 9V battery
• 1 x English Instruction Manual
• Standard factory box
