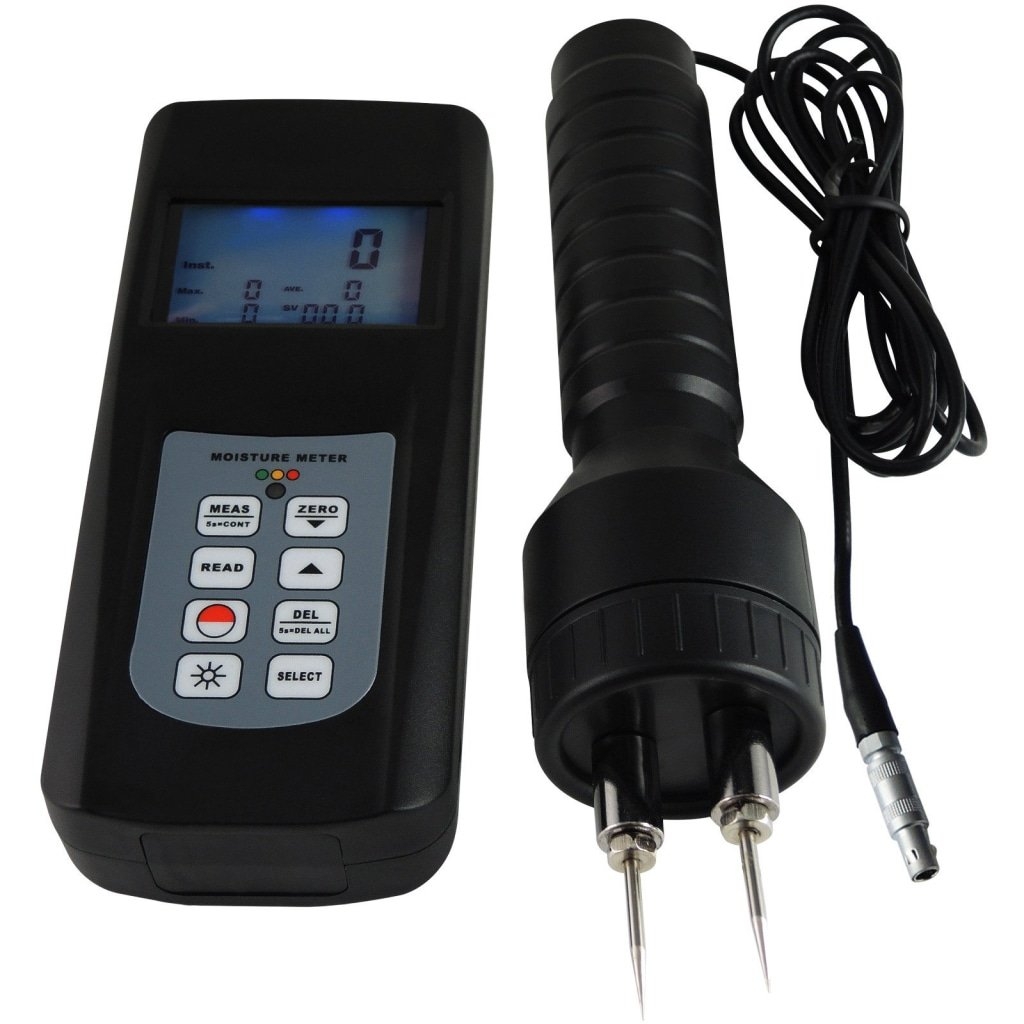

Digital Moisture Meter Pin Type 0~80% With RS232 Interface


In stock

$279.90 $362.89

In stock

This moisture meter is small in size, light weight and easy to carry. Easy to use and operate with complex and advanced features. It enables building surveyors and other practitioners to measure moisture levels of building elements such as walls, floors and other building materials.

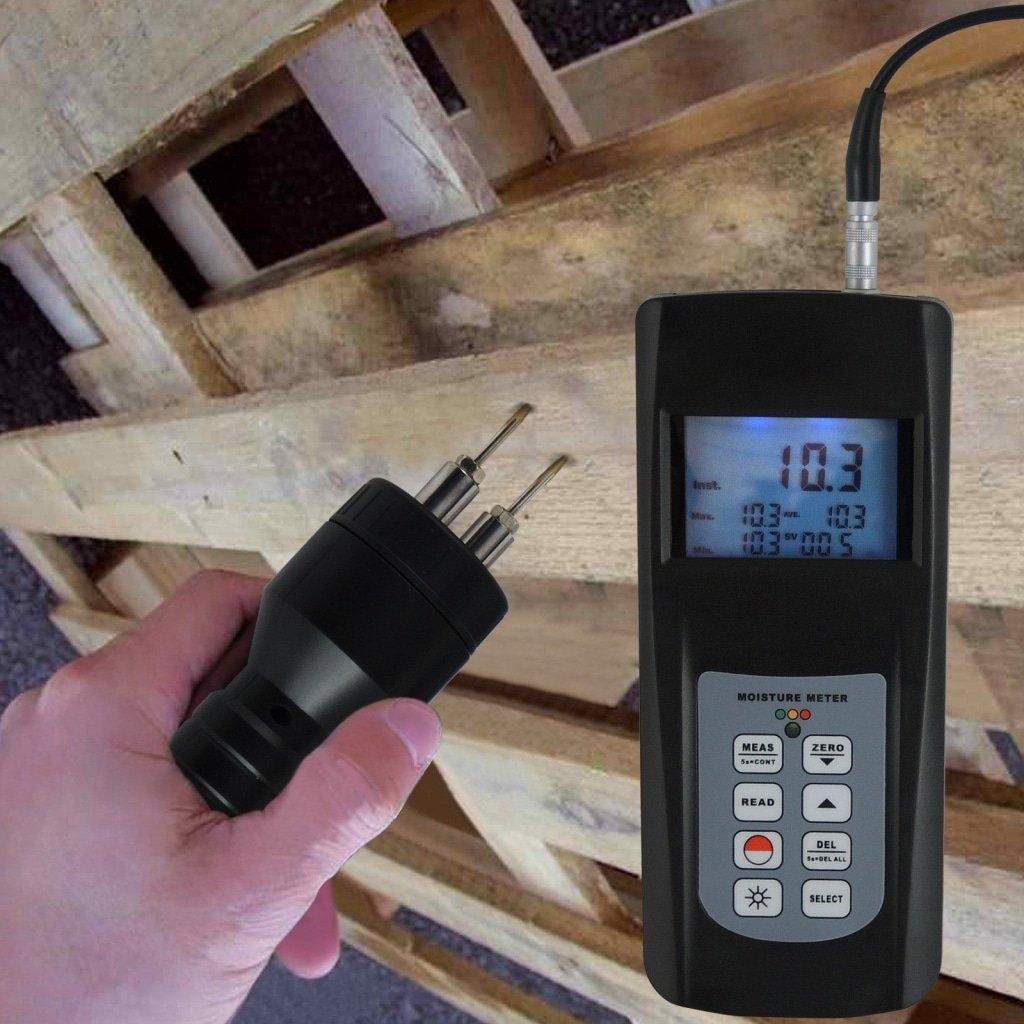

Applicable for  wood, fiber materials, wooden articles, tobacco, cotton, paper, building materials and soil


• Digital display gives exact readings with no guessing or errors
• Two presentations, digital display and color coded LED indication.
• Color coded LED lights indicates the moisture condition of the material
• Exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement
• Alarm values can be set by users
• Automatic power off to conserve power.
• Store and sort data on a PC computer (Optional)
• Optional: RS232 port to connect to a PC for data logging
• Click here to purchase cable and software

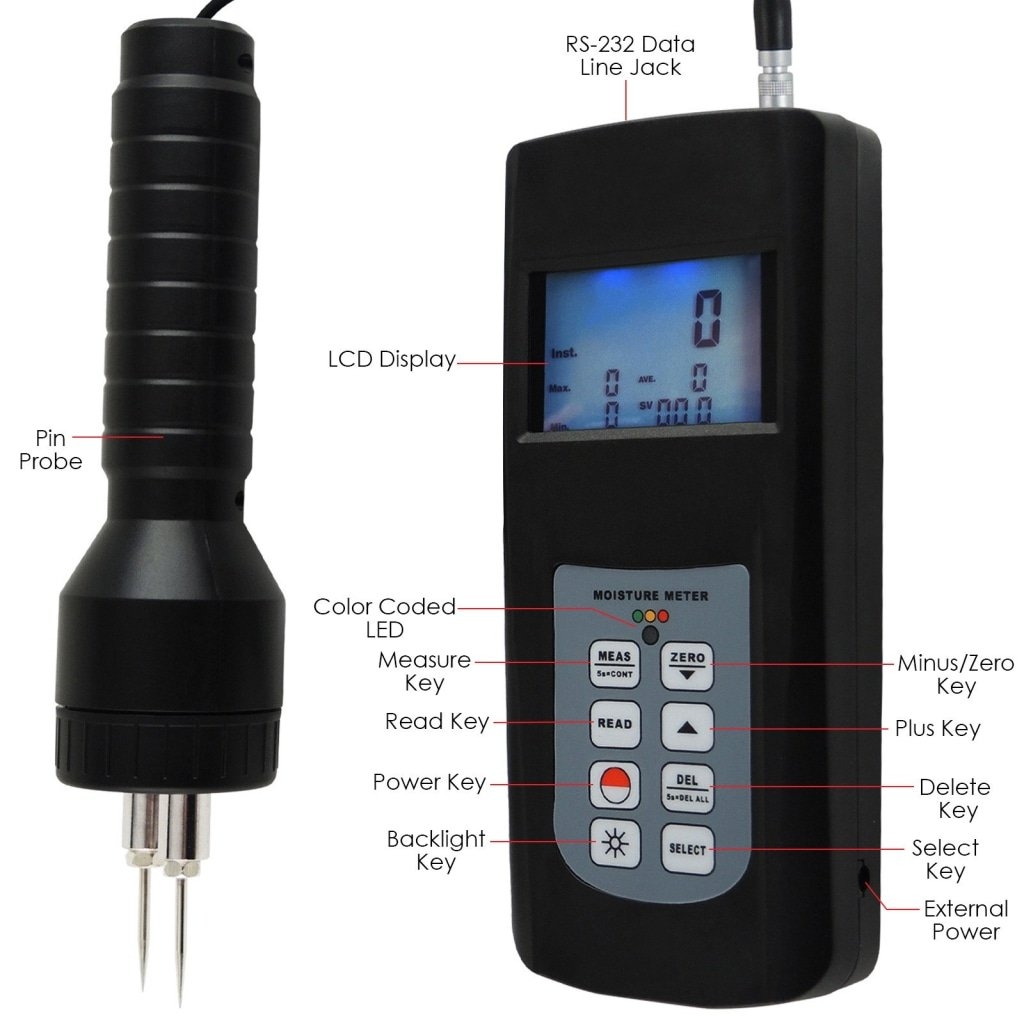

• Display: 4 digit 10mm LCD with color coded LED Indicator

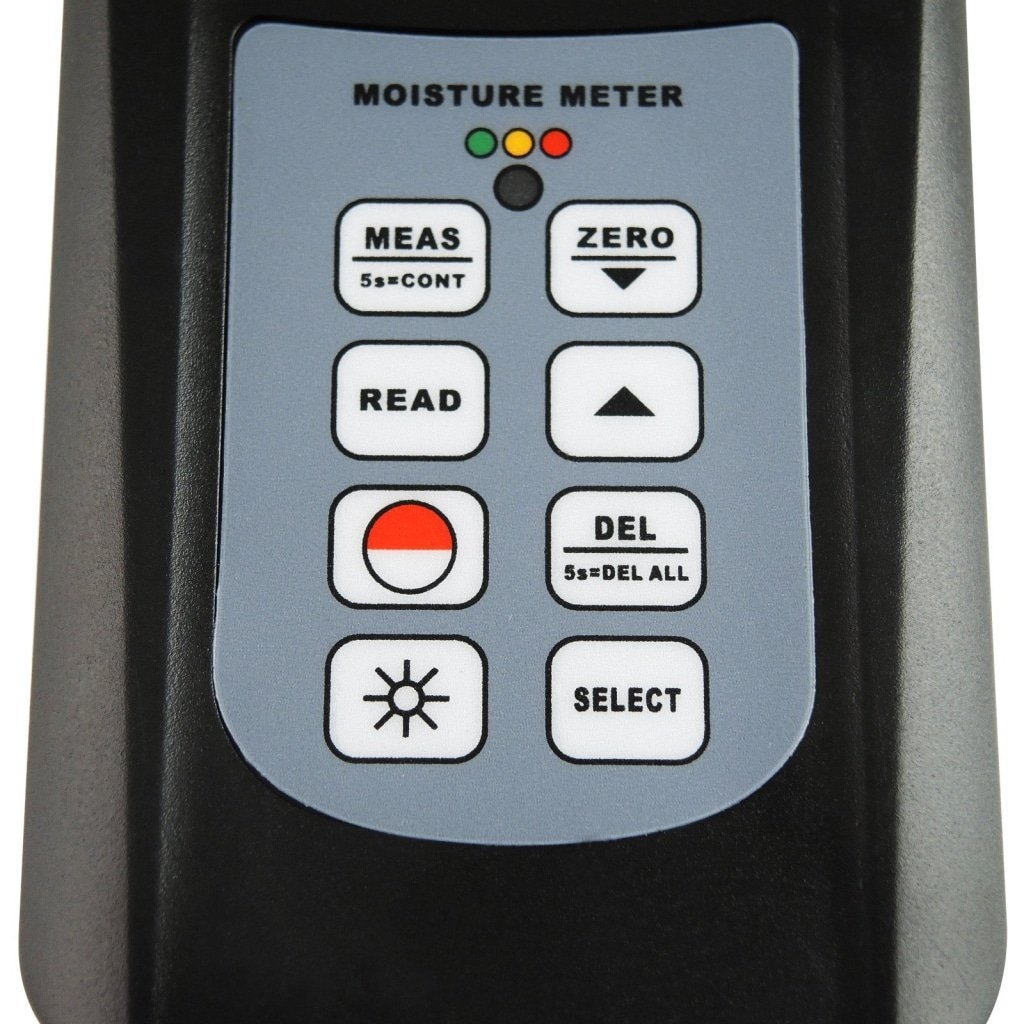

• LED Indicator
• Green LED: Air dry state
• Yellow LED: Borderline state
• Red LED: Damp state

• Calibration: Automatic

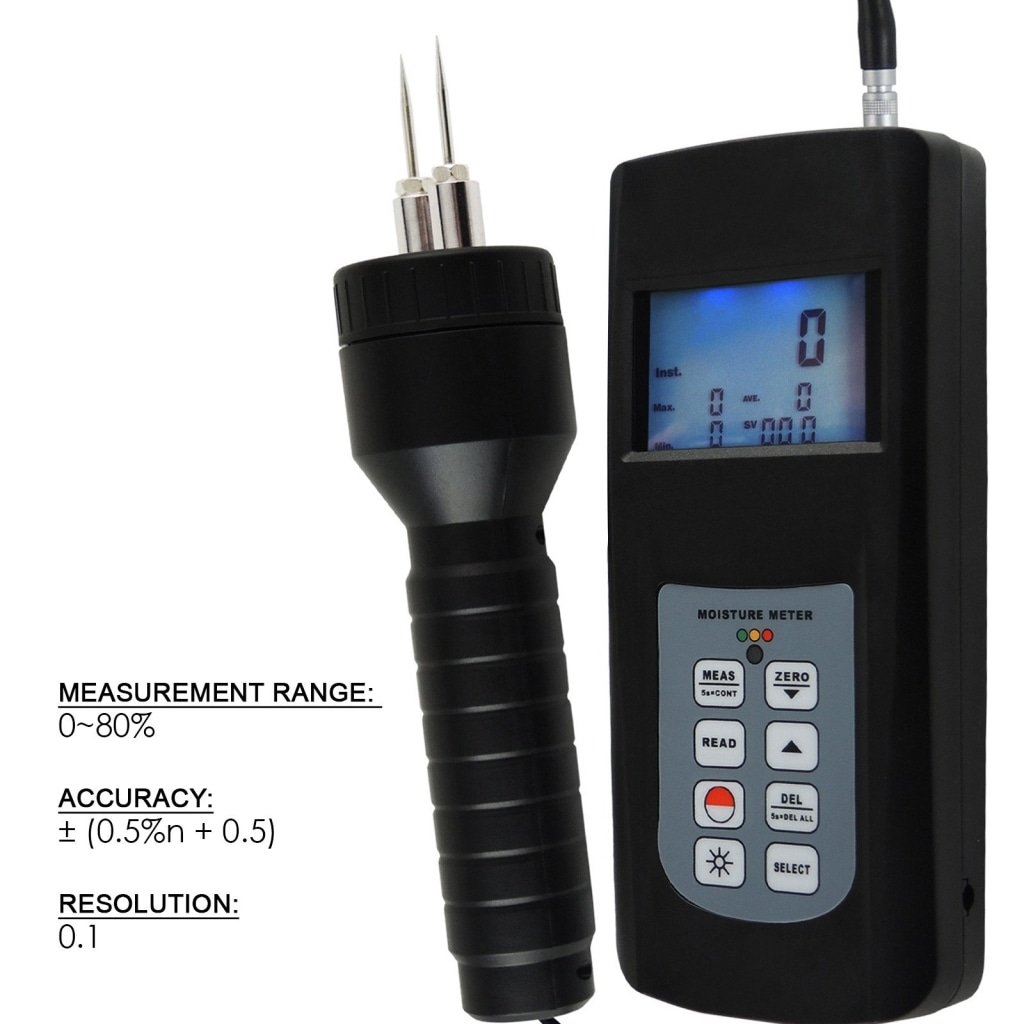

• Measurement Range: 0~80%
• Accuracy: ± (0.5%n + 0.5)
• Resolution: 0.1

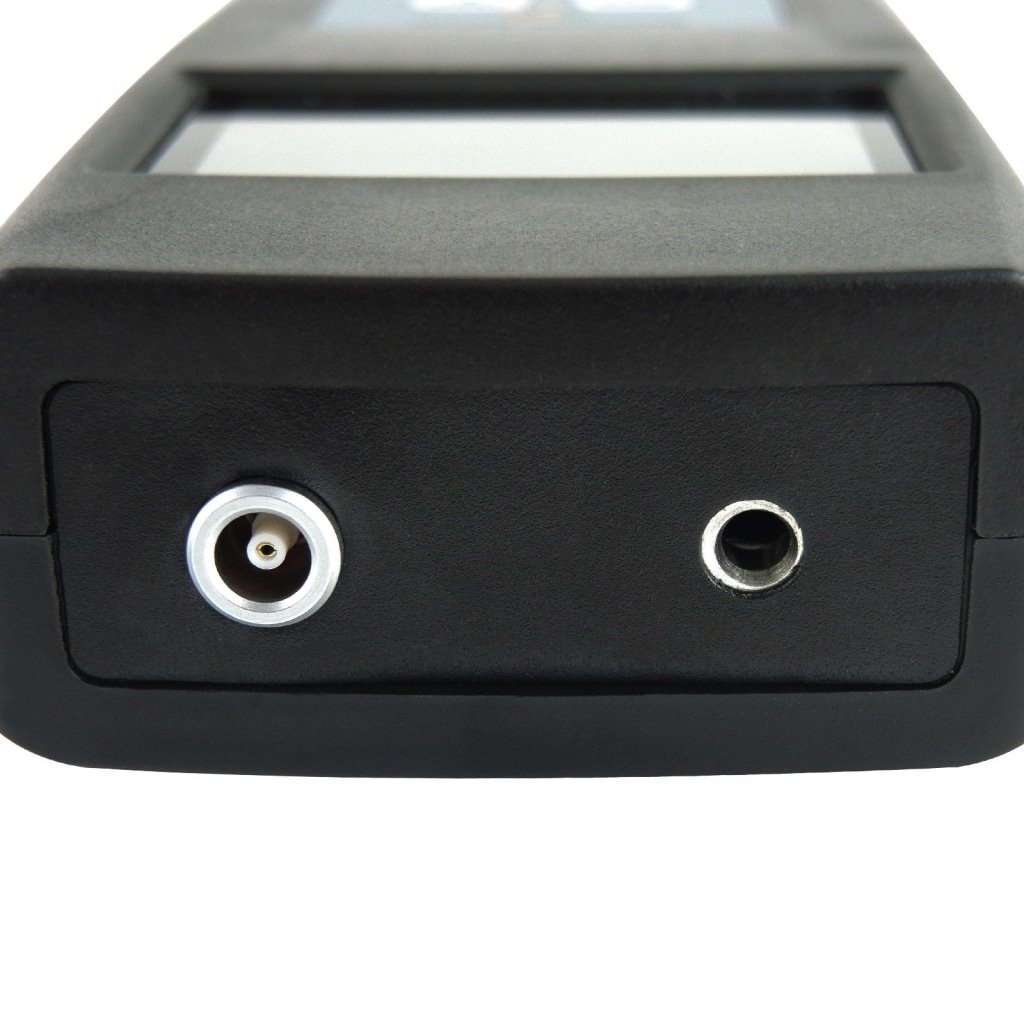

• PC interface: RS232C interface
• Power Supply: 4 x 1.5AAA batteries
• Operating Temperature: 0~50°C
• Humidity: Below 90% RH

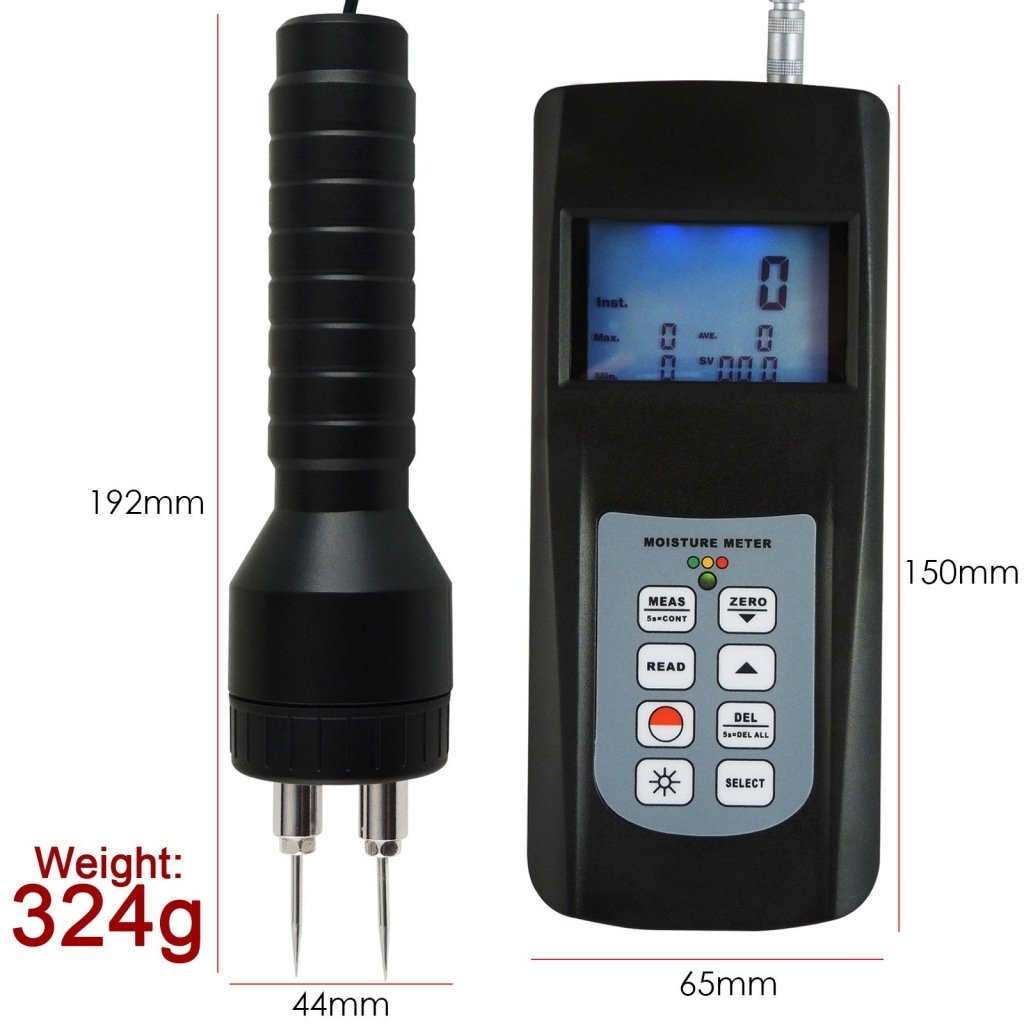

• Dimensions
• Main Unit: 150 x 65 x 30mm
• Measuring Pin: 192 x 44 x 44mm

• Weight: 324g

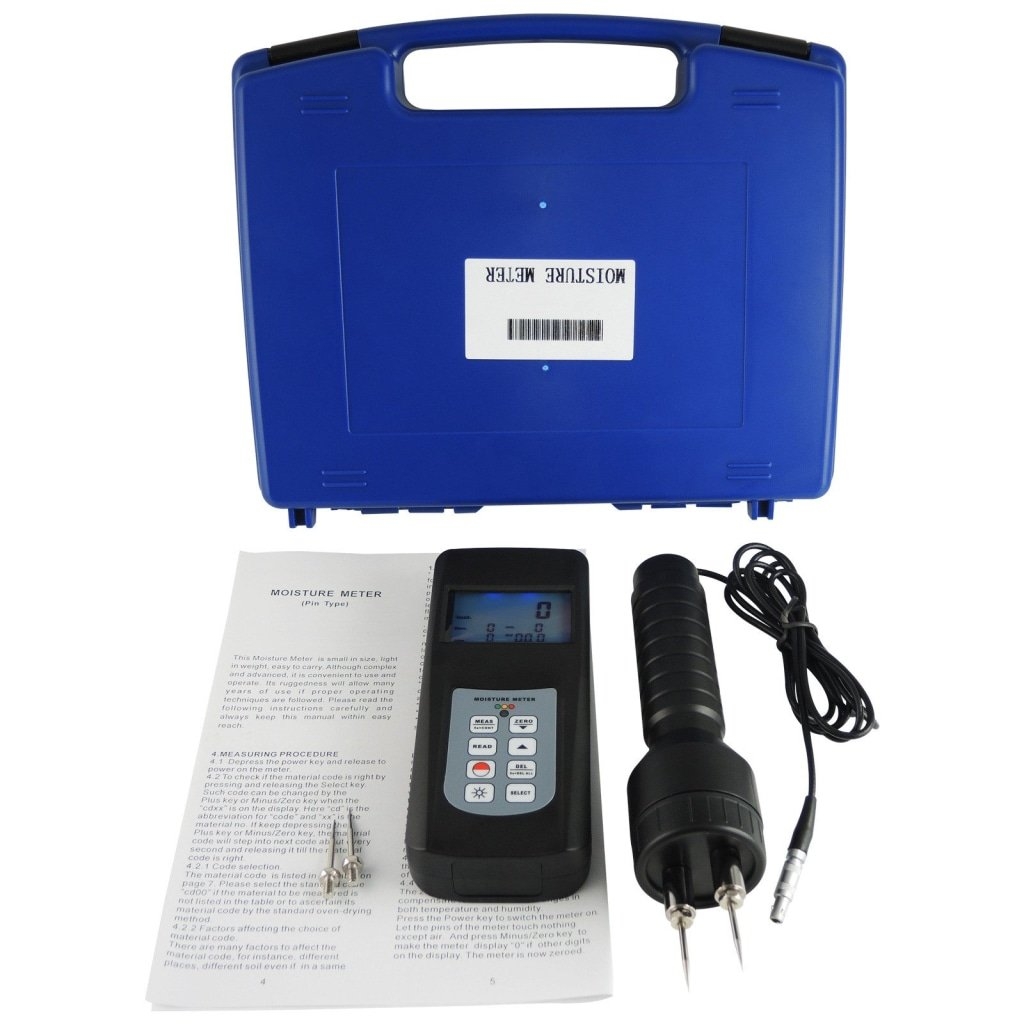

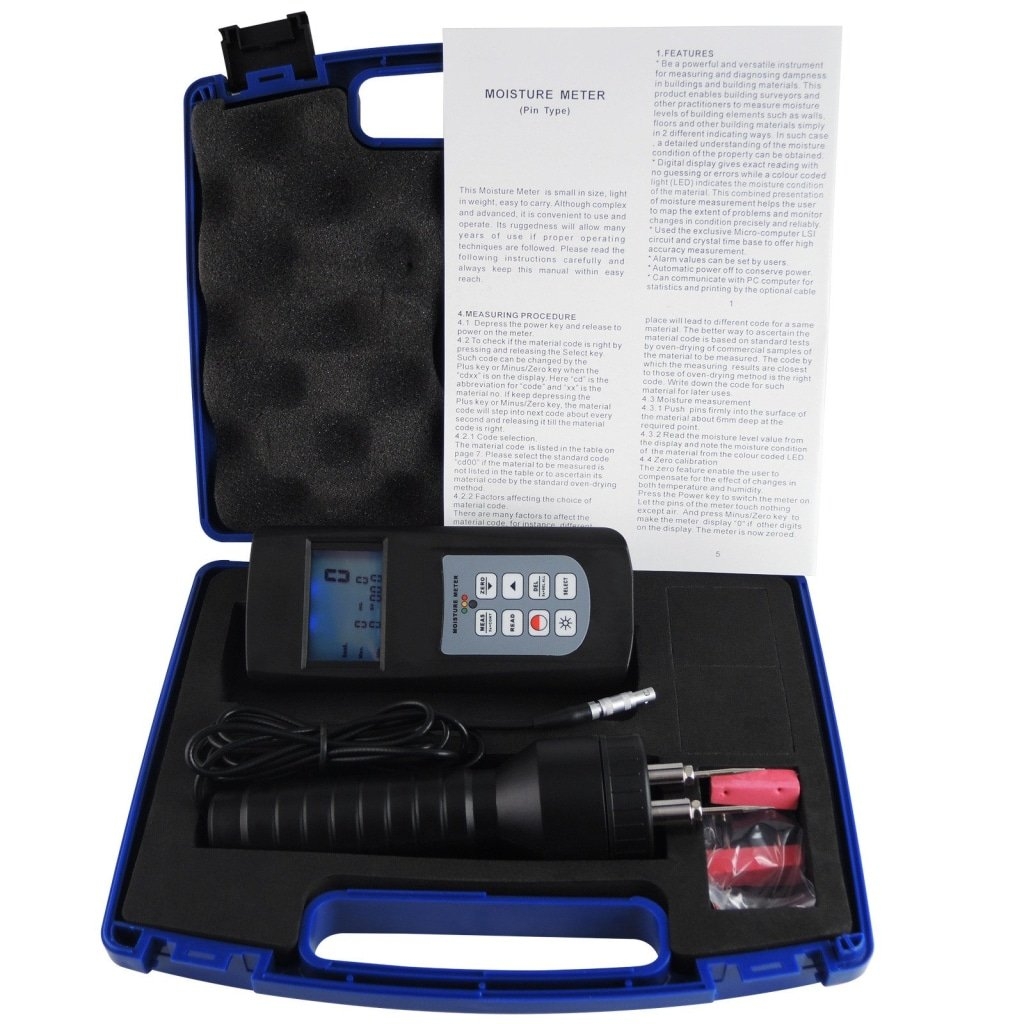

Set Includes

1 x Digital Moisture Meter

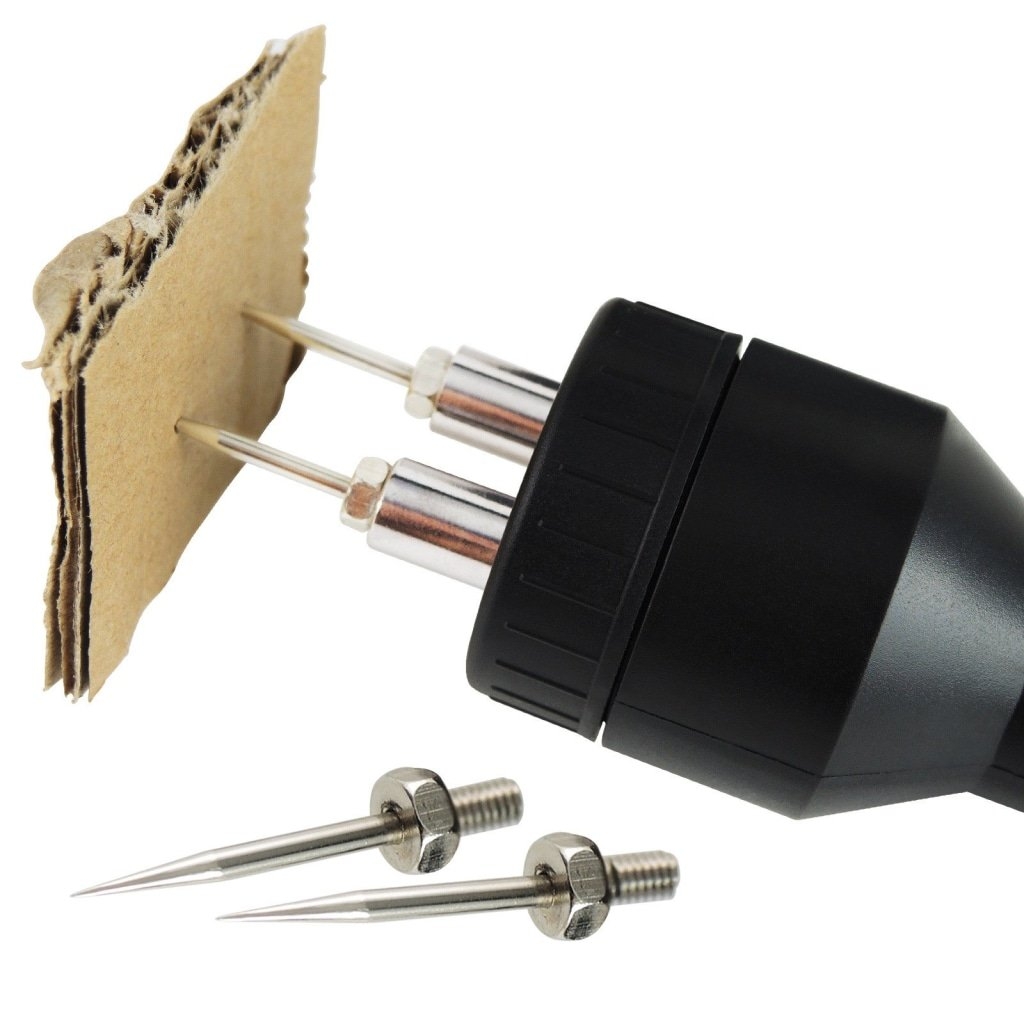

1 x Measuring Pin
1 x Operation Manual
1 x Carrying Case

• Optional RS232 Software CD & Cable
