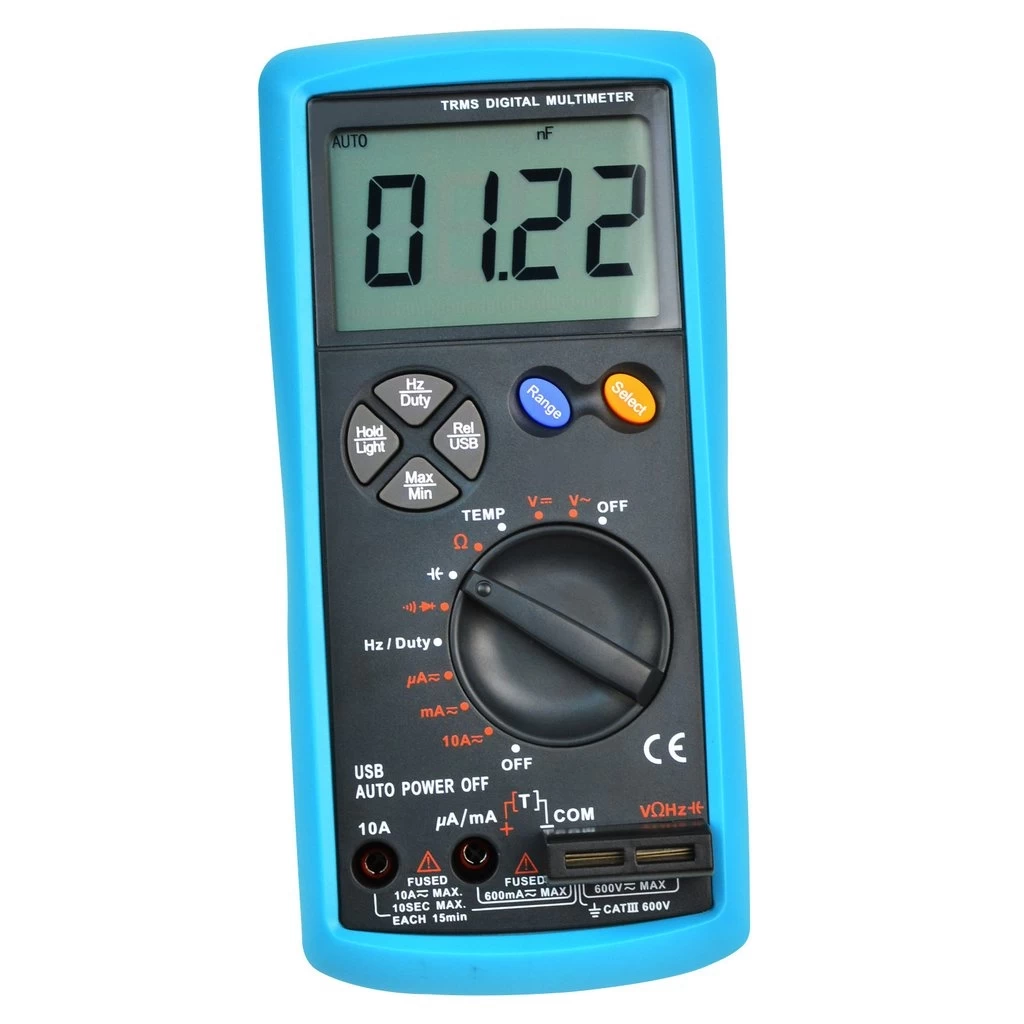

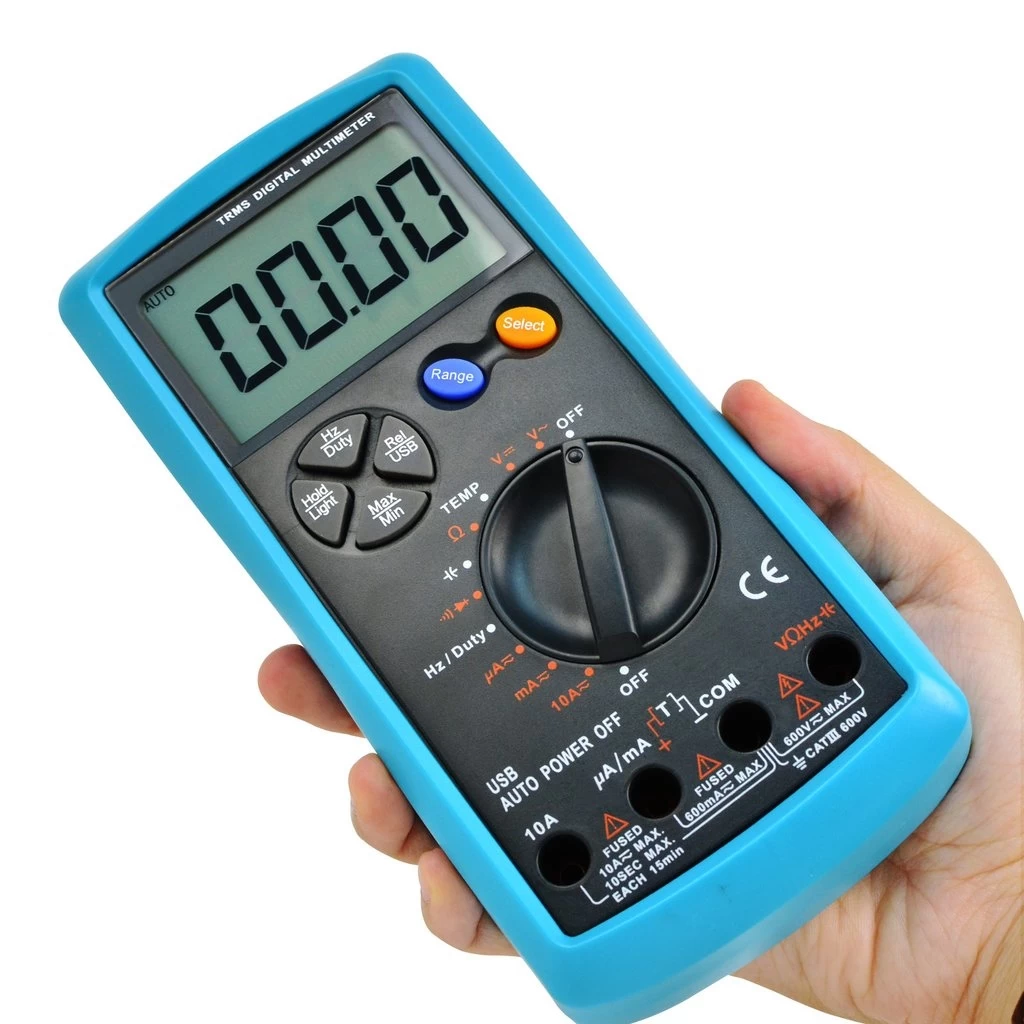

True-RMS AC/DC Multimeter and Duty Cycle Meter with USB interface

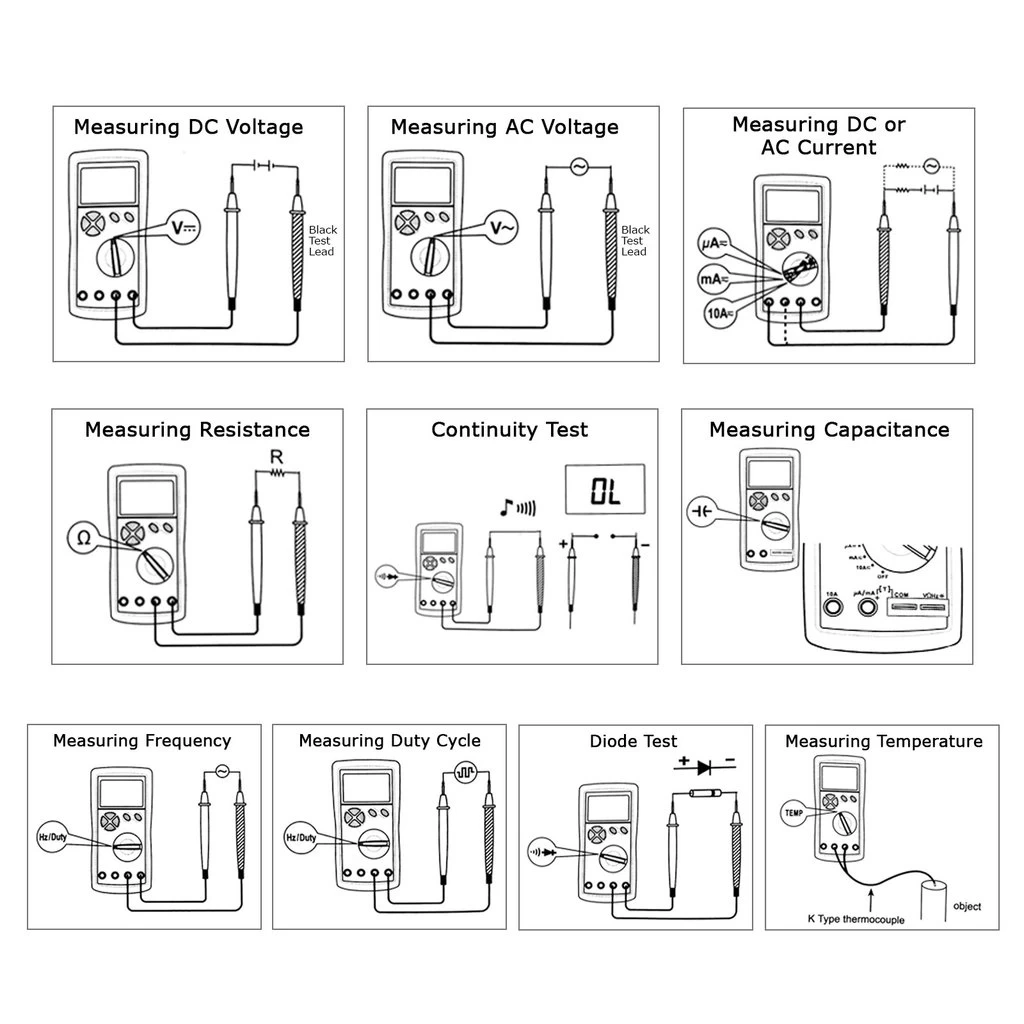

This multimeter is compact 3 5/6-digit true rms digital multimeter with a USB2.0 standard interface. It can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, Diode, Temperature(°C/°F), Continuity and Duty Cycle.

It has an CE Marking approval from European Directives for complying with the essential health and safety requirements.

Features

• 3 5/6- digit Tru RMS
• USB2.0 standard interface
• Measures True-RMS AC Voltage and True-RMS AC Current
• Provides manual range and auto-range mode

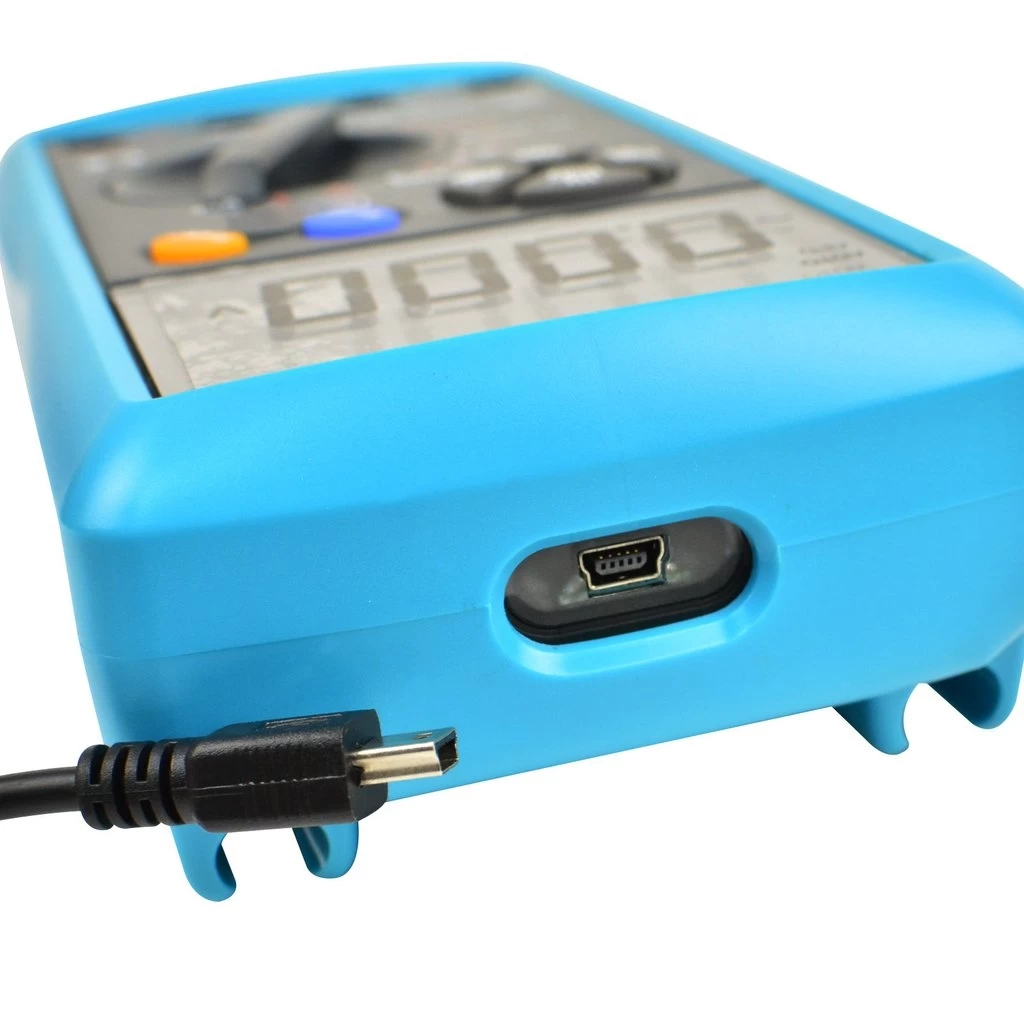

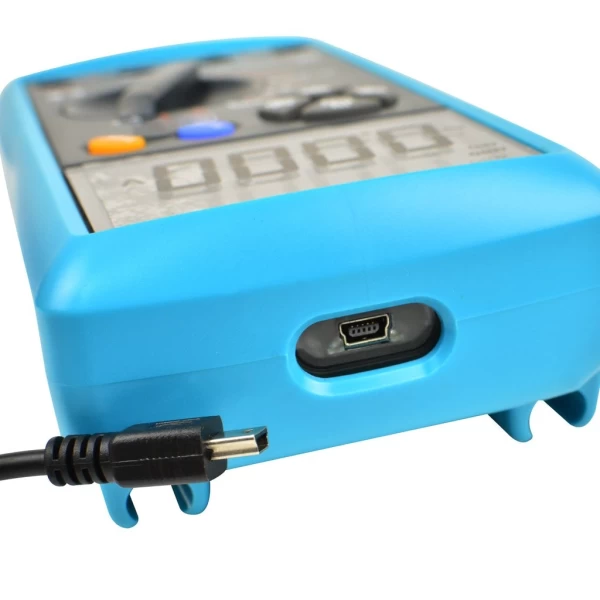

• Meter to computer transfer of measured readings via USB port
• With Analog Bar Graph and Reading Unit Indication
• Sampling rate is 3 times/sec
• Auto Polarity Indication
• Data Hold
• Backlight Functions
• Overload Protection for all ranges; displays “OL” on screen
• Low battery indication
• Relative measurement
• Max/Min value recording
• Auto and Manual power off
• Easy to operate and ideal measurement tool
• Designed according to IEC-61010 with CAT III 600V and pollution degree 2
• Conforms to EU Union directives
• With UL&GS Marking

Application

• measurements on distribution boards, circuit breakers, wiring including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed installation, and equipment for industrial use and some other equiment like stationary motors with permanent connection to the fixed installation.

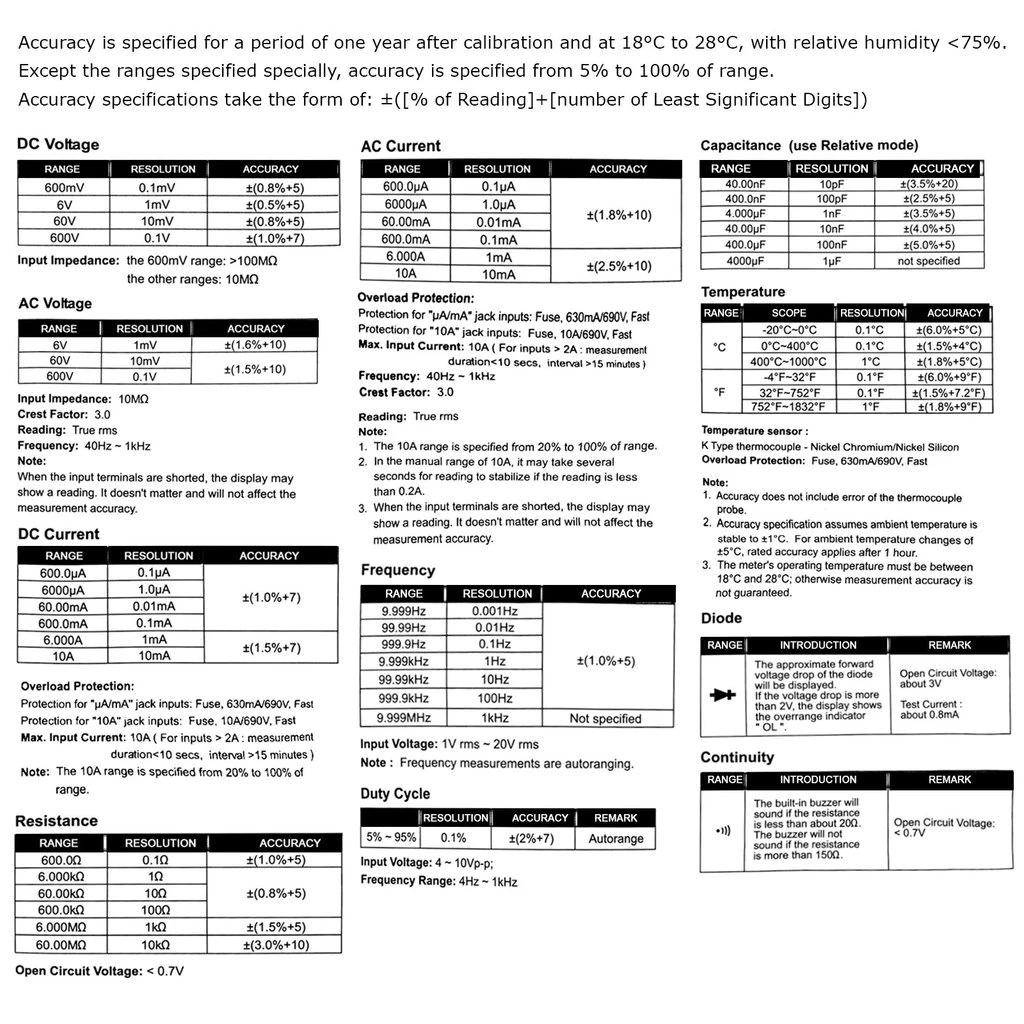

Specifications

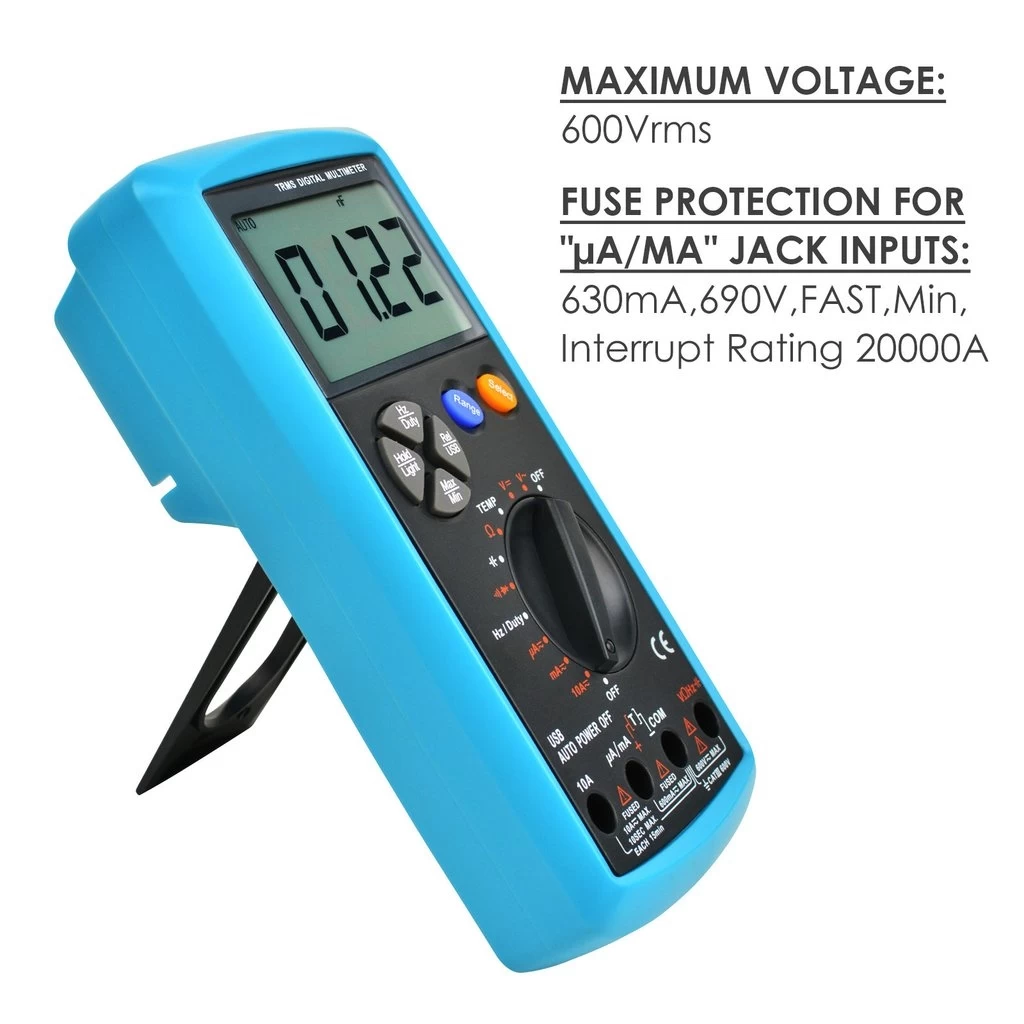

• Maximum Voltage between any Terminal and Earth Ground : 600Vrms

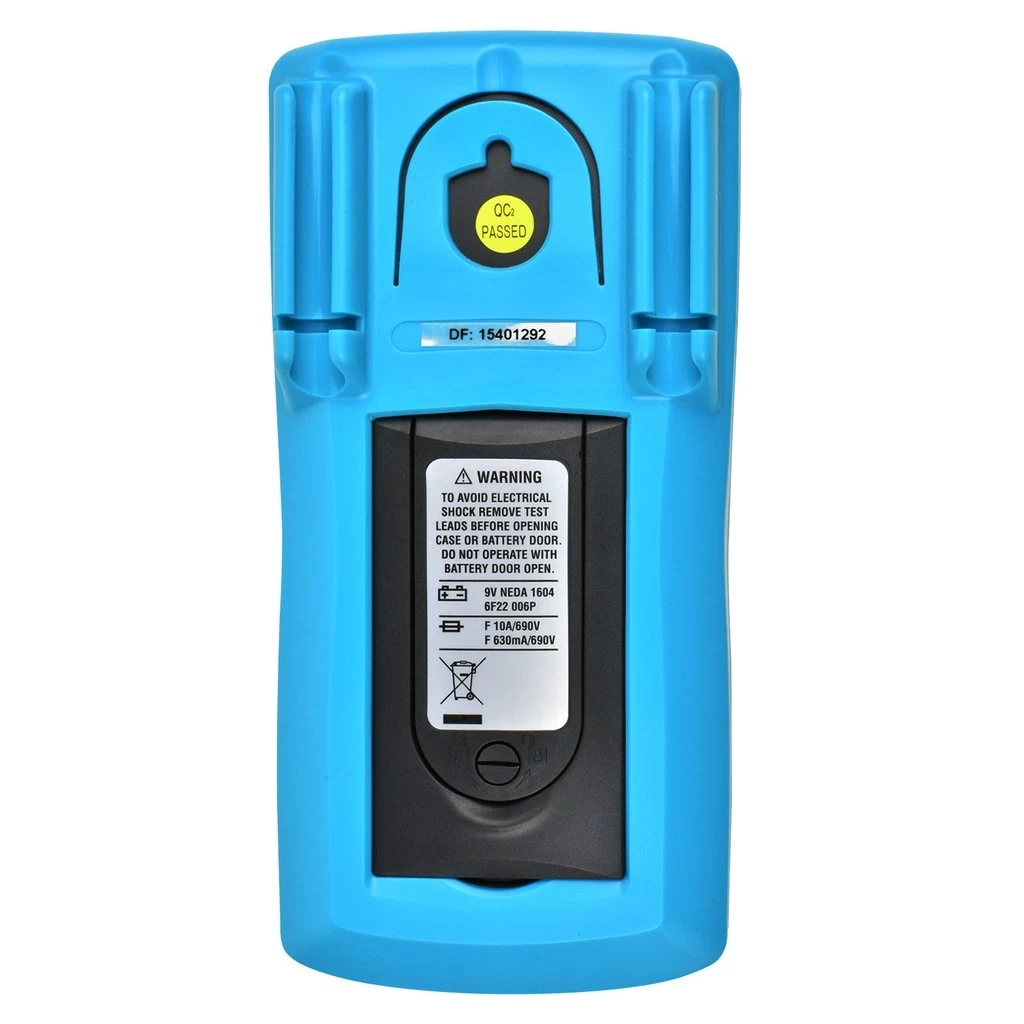

• Fuse Protection for “μA/mA”Jack Inputs:

• 630mA,690V,FAST,Min,Interrupt Rating 20000A

• Fuse Protection for “10A”Jack Inputs:

• 10A,690V,FAST,Min,Interrupt Rating 20000A

• Display:LCD, with a max,reading of 9999
• Overrange Indication:”OL”shown on the display
• Negative Polarity Indication:”-” shown on the display automatically
• Sampling Rate: about 3 times/sec
• Operating Environment: 0°C-40 °C,<75%RH
• Temperature Coefficient:

• 0.2 x (specified accuracy)/°C(<18 °C or >28°C)

• Storage Environment: -30°C~60 °C,<85%RH
• Operating Altitude:0-2000 meters

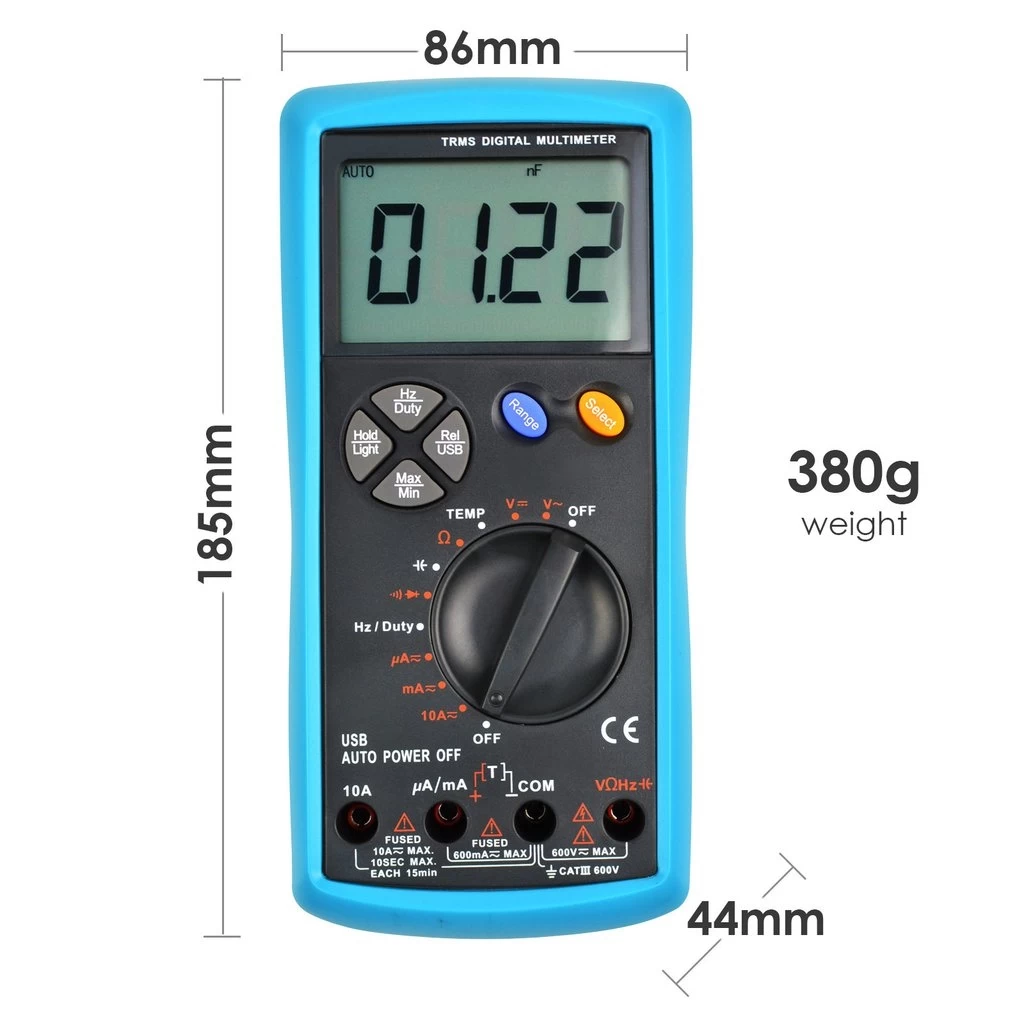

• Size:185 x 86 x 44mm
• Weight: about 380g (including battery and the holster)

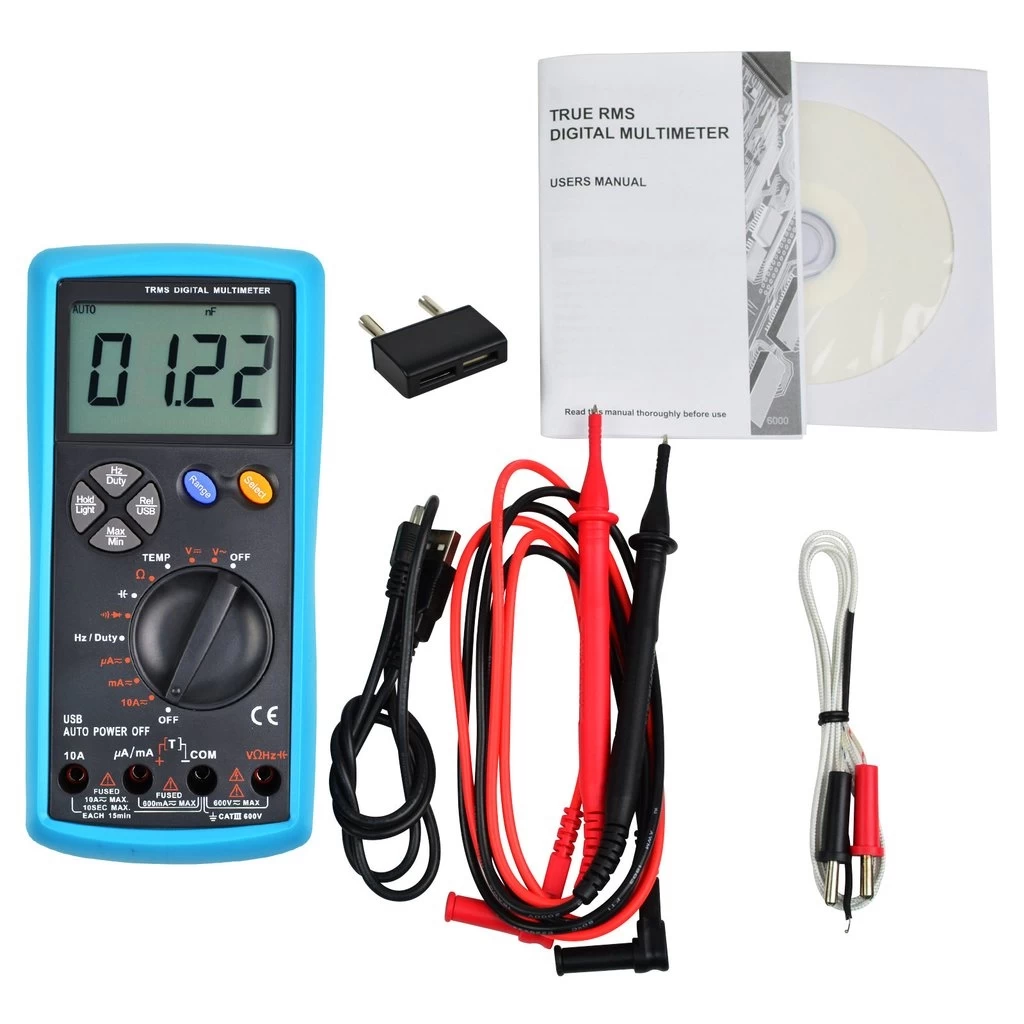

Set Includes

• 1 x True RMS Multimeter

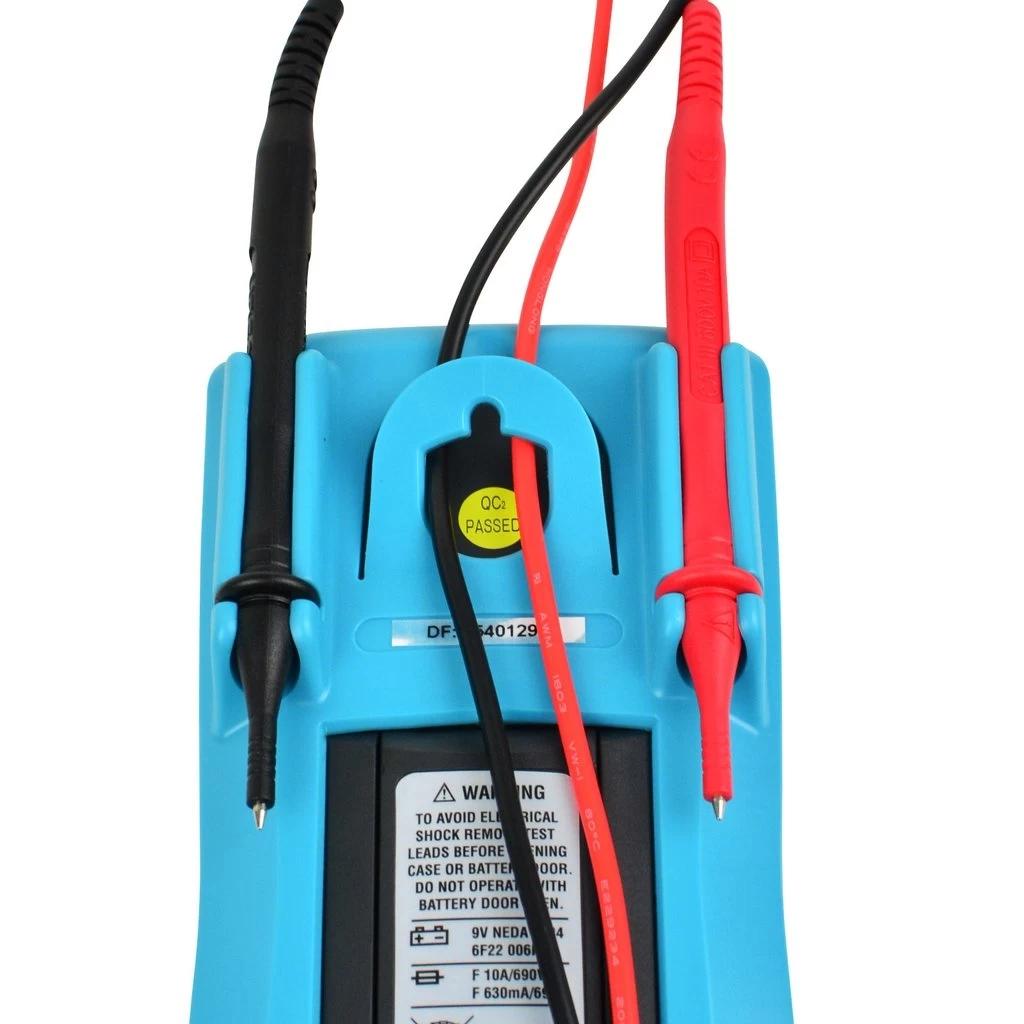

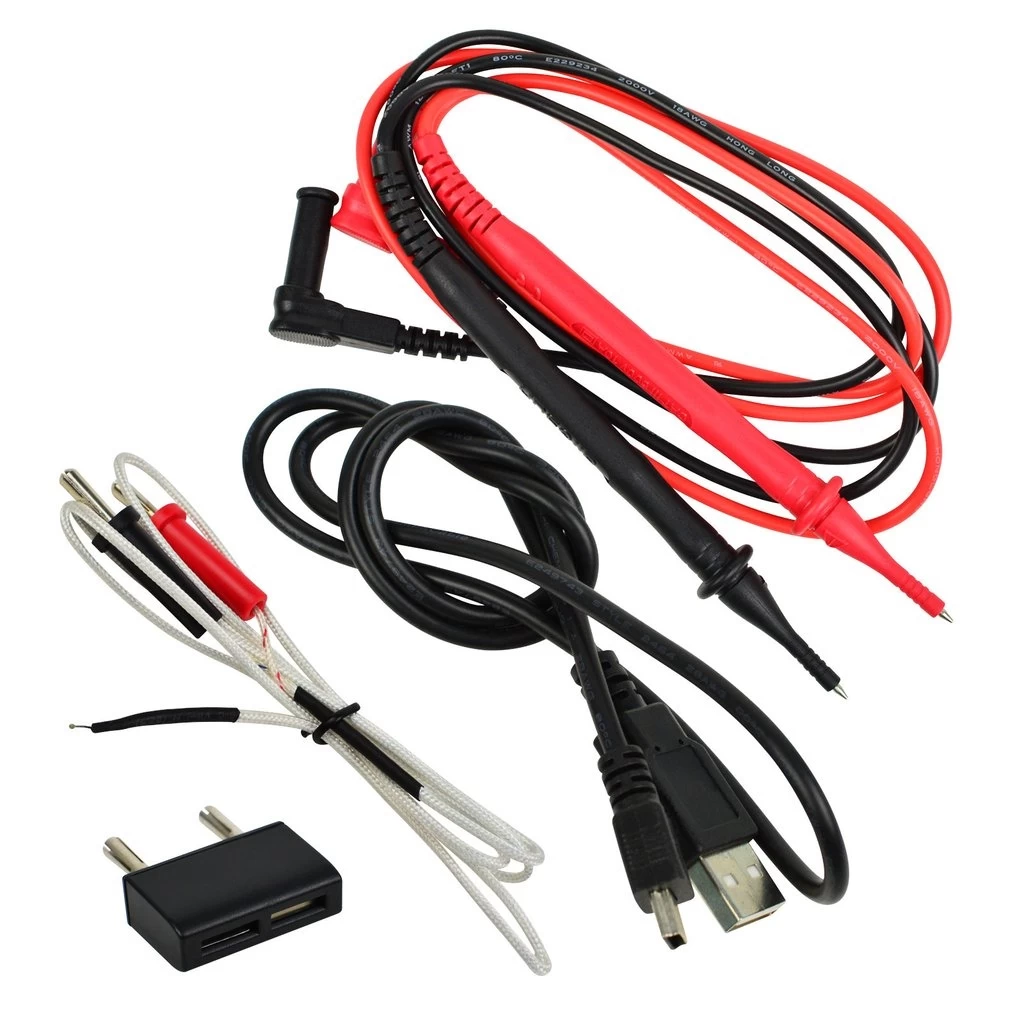

• 1 x Test Leads (pair)
• 1 x K-Type Thermocouple
• 1 x Transistor Test Socket
• 1 x USB cable
• 1 x CD Software
• 1 x English Manual
