Digital LED LUX / FC (Footcandle) Meter Luminous Intensity Measurement Luxmeter

Digital Light Meter with Multiple Measurement Features

Brightness and light intensity are crucial for accurate exposure in photography and ensuring optimal lighting in various environments. Don’t compromise your results with inferior testing equipment. Whether you’re assessing common areas for safe lighting levels or testing designs for compliance, our advanced light meter provides reliable performance.

This light meter measures illumination from various sources including white light LEDs, fluorescent lights, metal halides, high-pressure sodium, and incandescent sources. It is designed to offer precise luminous intensity measurements and is equipped to handle a broad spectrum of light sources.

Features

• Luminous intensity measurement across multiple light sources
• Spectral response closely matches CIE luminous spectral efficiency
• Compatible with LED white light and all visible light sources
• Overload and low battery indicators for reliable operation
• Cosine angular correction for accurate readings
• Measures illumination intensities in Lux or Footcandles (FC)
• Data HOLD function to freeze current readings
• MAX/AVG/MIN Hold for comprehensive data analysis
• Zero adjustment for calibration accuracy
• 99 records storage capacity for data logging
• Manual/Auto power OFF with disable function for energy conservation
• Auto ranging feature for ease of use
• Complies with JIS C1609:1993 and CNS 5119 general A class specifications
• CE and RoHS certified for safety and environmental standards

Usage & Applications

• Ideal for measuring light levels in diverse environments such as warehouses, factories, office buildings, restaurants, schools, libraries, hospitals, and more.
• Useful in photography and videography for optimizing lighting conditions.
• Applicable for assessing lighting in parking garages, museums, art galleries, stadiums, and building security.
• Beneficial for adjusting lighting levels in greenhouses and optimizing light for house plants or new LED fixtures.

Specifications

• Display: 4000 count, maximum display 3999
• Measuring Range:
  • 40, 400, 4000, 40,000, 400,000 Lux
  • 40, 400, 4000, 40,000 Footcandles
• Accuracy: ±3% (calibrated to standard incandescent lamp 2856°K); ±6% for other visible light sources
• Sensor: Silicon photodiode with filter
• Angle Deviation from Cosine Characteristics:
  • 10° – ±0.5%
  • 30° – ±2%
  • 50° – ±3%
  • 60° – ±6%
  • 80° – ±25%
• Sampling Rate: 2.5 times per second for digital display
• Operating Environment: 5~40°C (41~104°F), 0~80% RH
• Storage Environment: -10~60°C (14~140°F), 0~70% RH
• Dimensions:
  • Meter: 38 x 55 x 130 mm (1.5 x 2.2 x 5.1 inches)

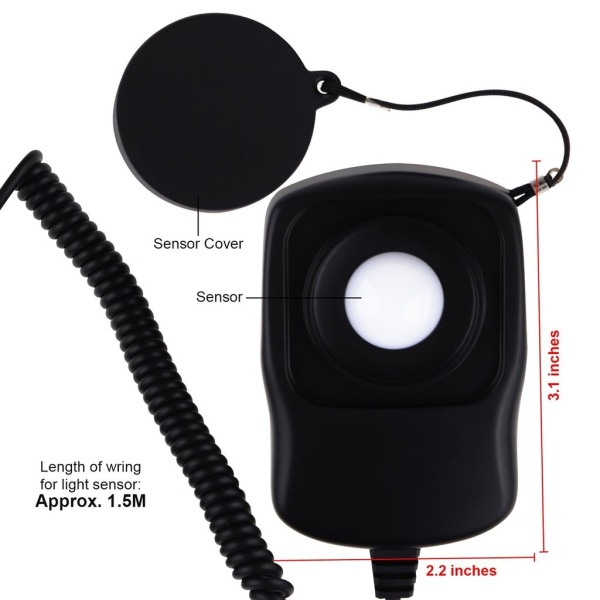

  • Sensor: 25 x 55 x 80 mm (9.8 x 2.2 x 3.1 inches)
• Weight: Approx. 250 g
• Length of Wiring for Light Sensor: Approx. 1.5 meters
