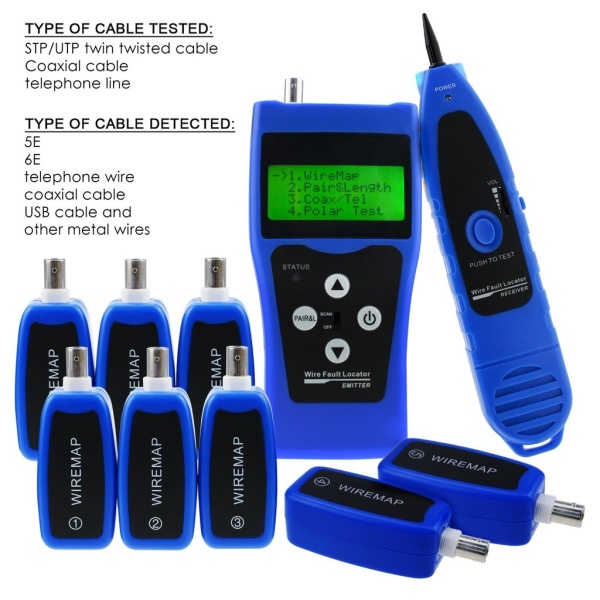

Professional Handheld Multipurpose Network LAN Cable Tester w/ 8 far-end test Jacks

Availability:

In stock


$219.90 $276.82

In stock

This multipurpose network cable test & inspection instrument has three great functions. Hunting, wire sorting and circuit status testing.

It is widely applicable to telephone systems, computer networks, other metal wire circuit and other fields.

Features

• One person enough to complete cable continuity check
• With 8 Remote identifier
• Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables
• Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
• Locate the wiring or connection error
• Measure cable length and determine the distance of open circuit and short circuit
• Dynamically calibrate cable length and make length measurement as accurate as 97%
• Automatically time-delay shut off and backlight display function
• Measure length and pair with or without far-end recognizer
• Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID 8)
• Far-end recognizer with prompting voice
• Self-checking function and automatically compensate any change in battery capacity or ambient temperature
• Single board computer software watchdog design and reliable operation

Specifications

• Display : 4 x 16 character big screen LCD
• Type of cable tested:

• STP/UTP twin twisted cable
• Coaxial cable
• telephone line

• Type of cable detected

• 5E
• 6E
• telephone wire
• coaxial cable
• USB cable and other metal wires

• Ambient temperature : -10°C ~ +60°C
• Tester Port

• Tester RJ45 mater port (M), tester LOOPBACK RJ45 port (L),hunting RJ45 port (with RJ45);
• The RJ11-to-alligator converters are used to measure and check the continuity of coaxial cable and telephone line.

• Length measurement of Twin Twisted Cable:

• Scope : 1~350M (3~200ft)
• Calibration accuracy : 3% (+/-0.5M or +/-1.5ft)(calibrating cable >5M)
• Shipment accuracy : 5% (+/-0.5M or +/-1.5ft).(AMP, AT&T Class 5 cable)
• Display : M or ft

• Length Calibration : user can set calibration factor by himself with a given length cable. The length of calibrating cable more than 5M
• Wire Sequence and Locating Cable Error:

• Checks errors such as open circuit, short circuit, reverse connection, croos-over or croos-talk interference.

• Locating Cable : 8 remote identifier test jacks (ID1 > ID8) (8 far-end test jacks are included on set)
• Automatic time-delay shut Off time : the tester does not operate for 30 minutes.
• Overall Dimension

• Main tester : 185 x 105 x 50mm
• Receiver : 218 x 46 x 29mm
• Remote identifier : 84 x 34 x 27mm

• Power : Two (2) 9V batteries (included)

Set Includes

• 1 x Main unit tester
• 1 x Receiver
• 8 x far-end passive test jacks (ID no.ID1-ID8)
• 1 x Earphone
• 1 x RJ45 Cable
• 1 x RJ11 Cable
• 2 x 9V Batteries (FREE)
• 1 x RJ11-to-Alligator converter
• 1 x English Instruction manual
